Meridian32

Smart and Performance oriented

MERIDIAN32 a refined system aluminium sliding window. Combining a slim 20mm sightline for clear visuals and durable strength in high quality 6063-T6 Alloy. Made for contemporary aluminium house and industrial premises windows, it is designed with single and multi-point locking to ensure extra protection. The system can accommodate mesh tracks, various glass options, different finishes and versatile configurations. With an aggressive, minimalist design language, MERIDIAN32 is perfect for any architects or fabricators and a customizable product line that runs smoother than anything currently available.

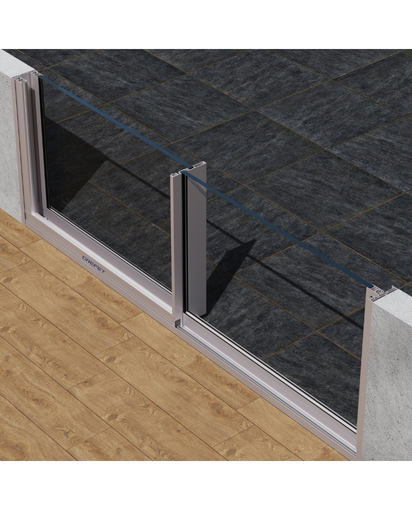

  • Sliding system with all frame and sashes at 90 degree encounter
  • Sleek system
  • Multi locking mechanism

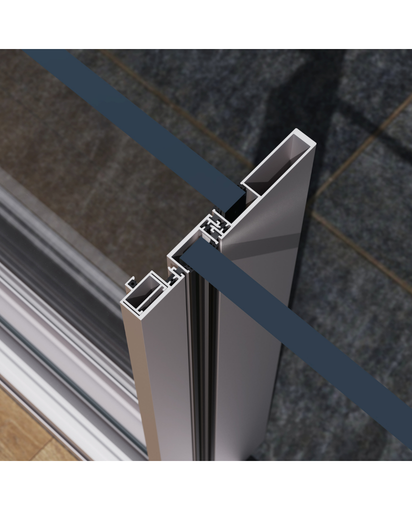

  • Sleek reinforced interlocking system
  • Glazing – 6 – 24mm glass
  • Possible Typology – 2, 3, 4, 6 leaf
  • Sections
    • Frame width
      • 2 track – 85mm
      • 3 track – 132mm
    • Frame depth – 30 | 40mm
  • Profile thickness – 1.5 to 5mm
  • Sash – 65mm
  • Maximum weight per leaf – 160 Kg
  • Central interlocking – 20mm
  • Multi-locking system with key option
  • Permittable dimensions per leaf (W X H) – 1220 X 2700
  • Transmittance
    • Uw from 3.0 (W/m2k)*
    • *Please consult typology, dimensions & glass
  • Maximum acoustic insulation Rw = 30 dB
  • Wind resistance
    • Test BS EN 12211:2016 (2.5 kPA, Class BE2500)
  • Air permeability
    • Test BS EN 1026:2016 (PA 600, Class 4)
  • Water tightness
    • Test BS EN 1027:2016 (PA 600, Class 5A)
