Grefet

CSP100

Premium solution tailored for modern living

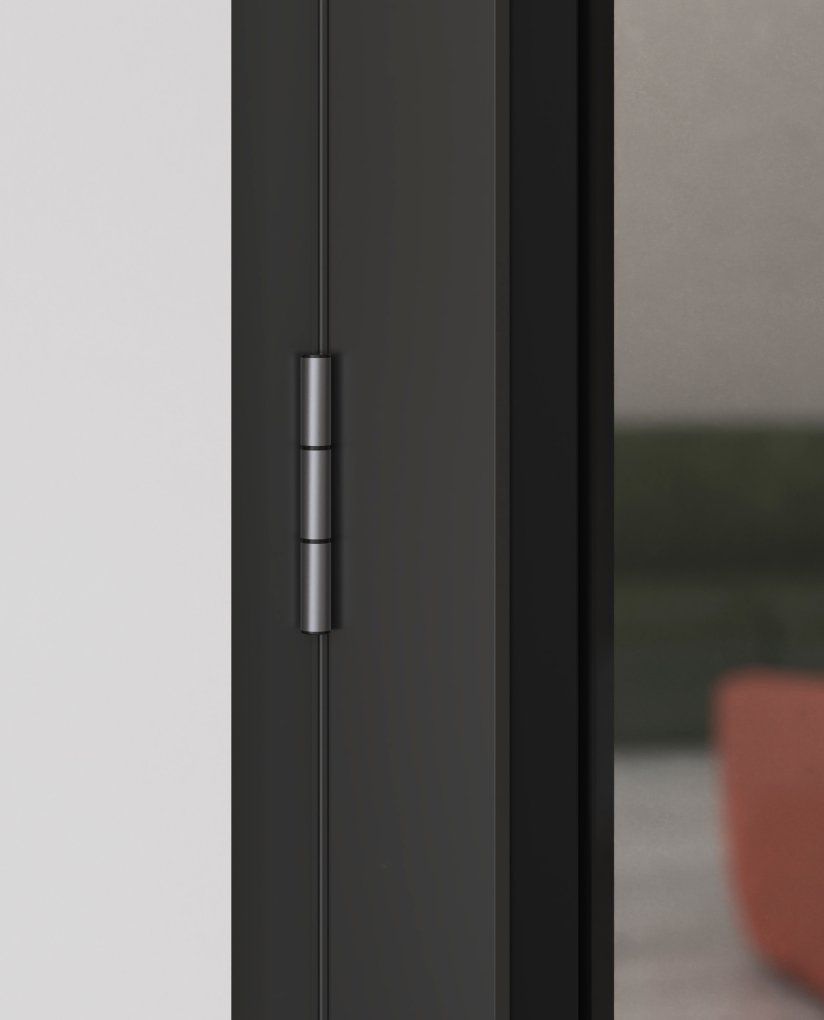

The GREFET CP100 Series is a premium collection of aluminium door and window systems crafted for bold architectural expression and elevated everyday comfort. Designed with precision engineering and contemporary aesthetics, the series combines tall openable doors, intelligent ventilation solutions and advanced hardware technologies into one refined system. From turn and tilt windows that enable controlled ventilation during monsoons to full opening access for maximum airflow and effortless cleaning, every element is built for practicality and performance. The premium pivot system features surface mounted hinges with custom designed skirts for a clean, seamless appearance, while fanlight solutions provide convenient ventilation for high and hard to reach spaces. Supporting glazing up to 32mm, the CP100 Series delivers exceptional durability, smooth functionality, enhanced insulation and sophisticated modern design for luxury residential and commercial spaces.

  • Premium Aluminium System Designed for Contemporary Luxury Spaces

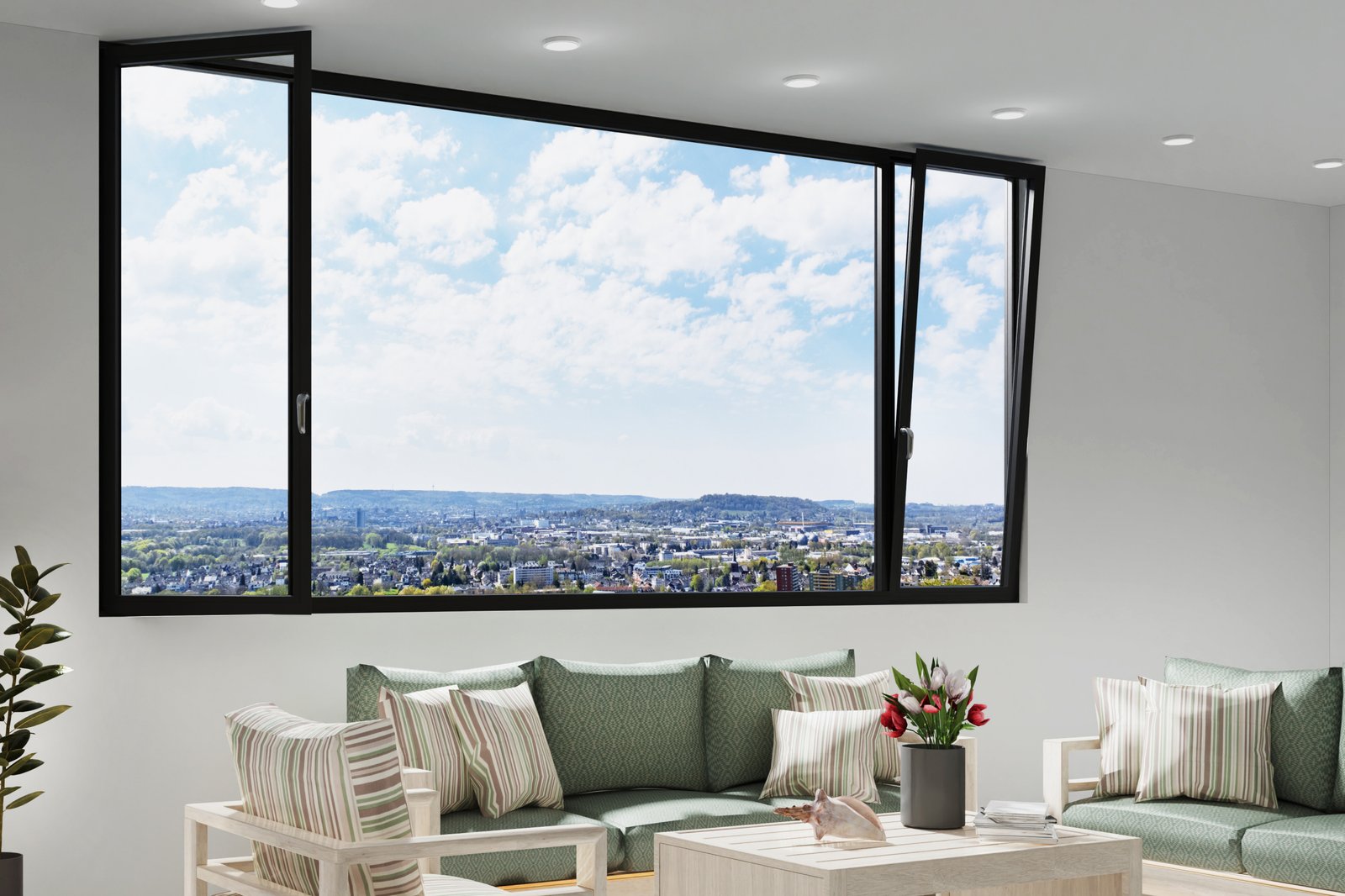

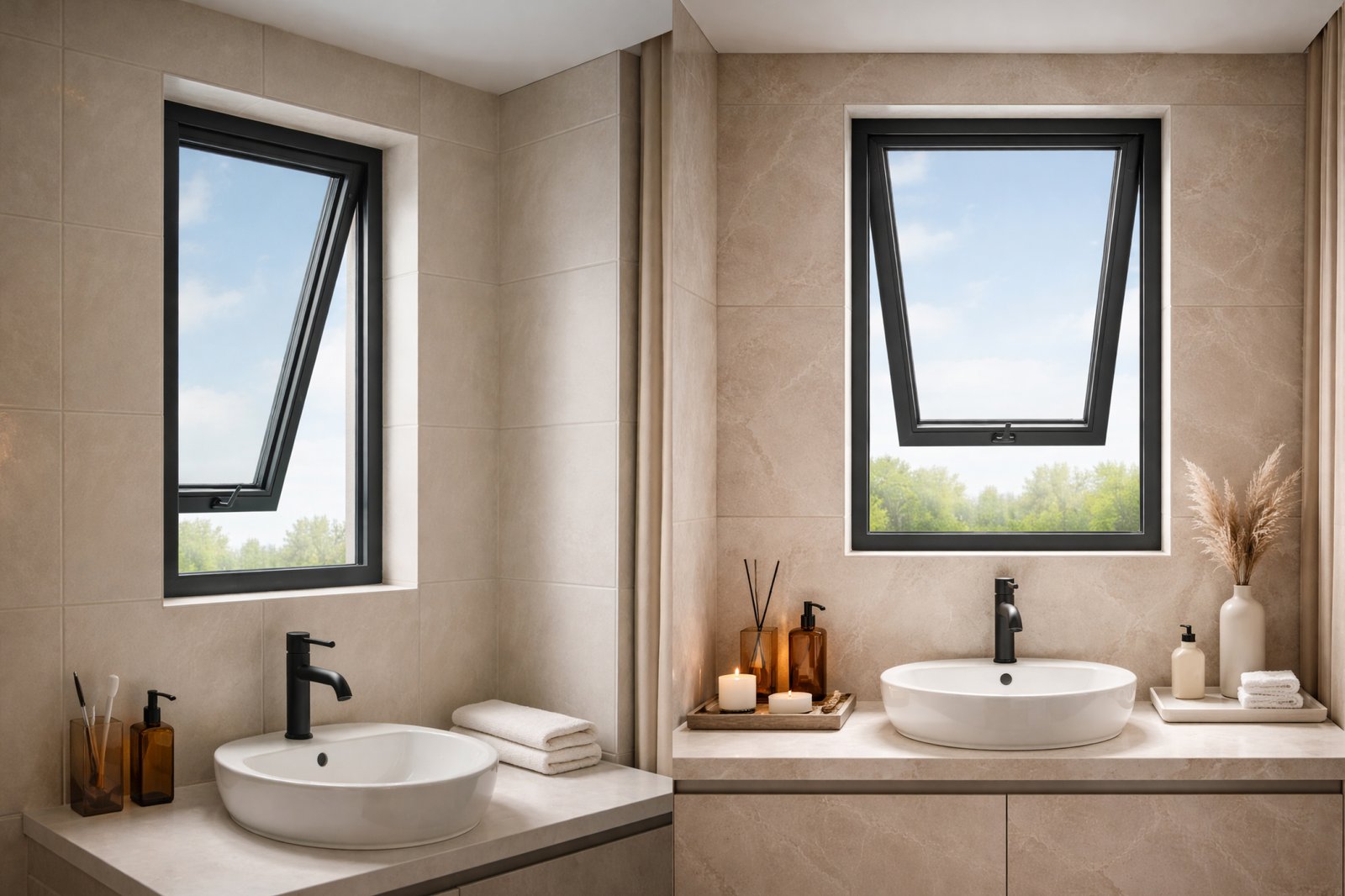

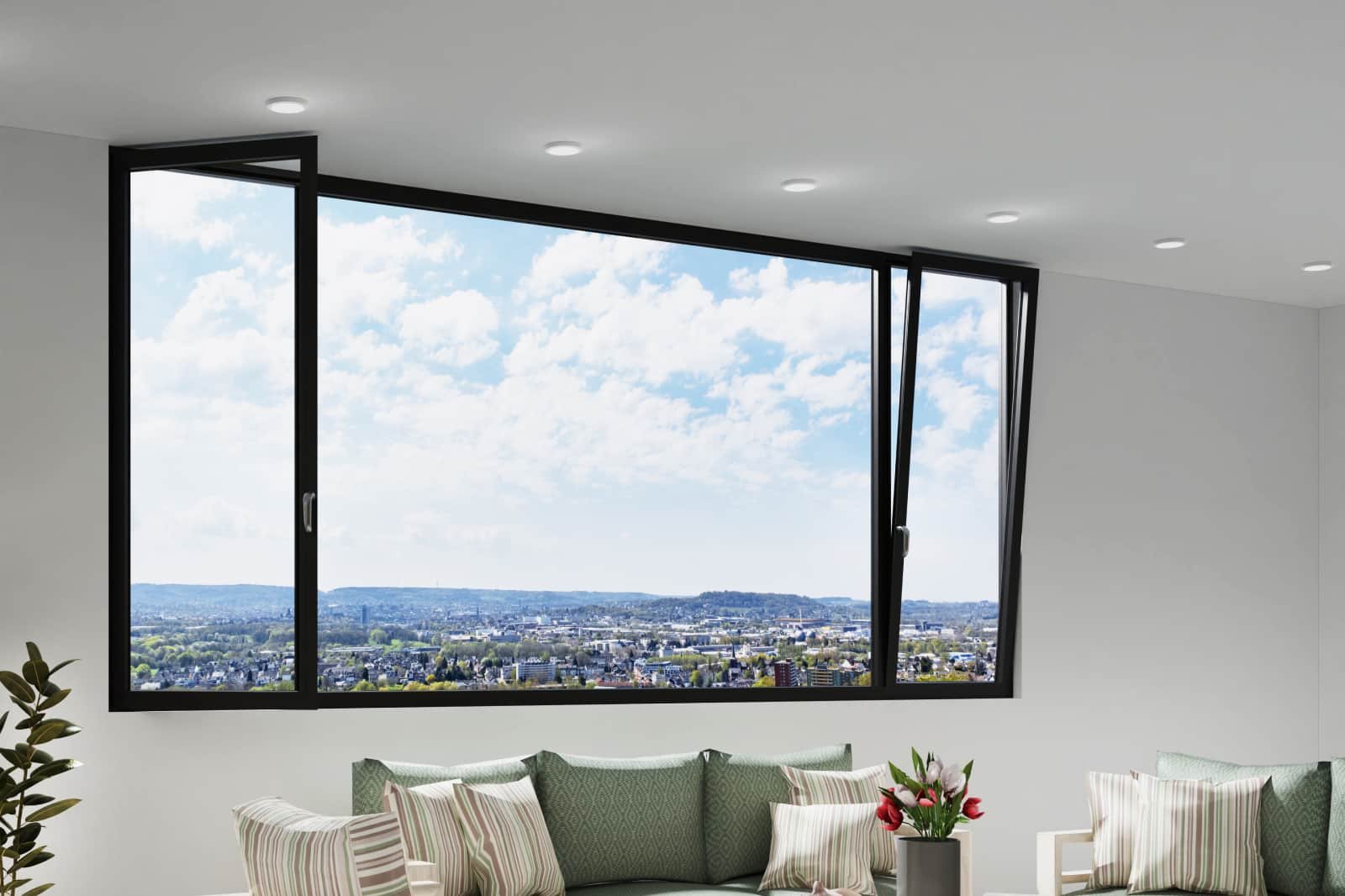

  • Turn & Tilt Functionality for Controlled Ventilation and Full Opening Access

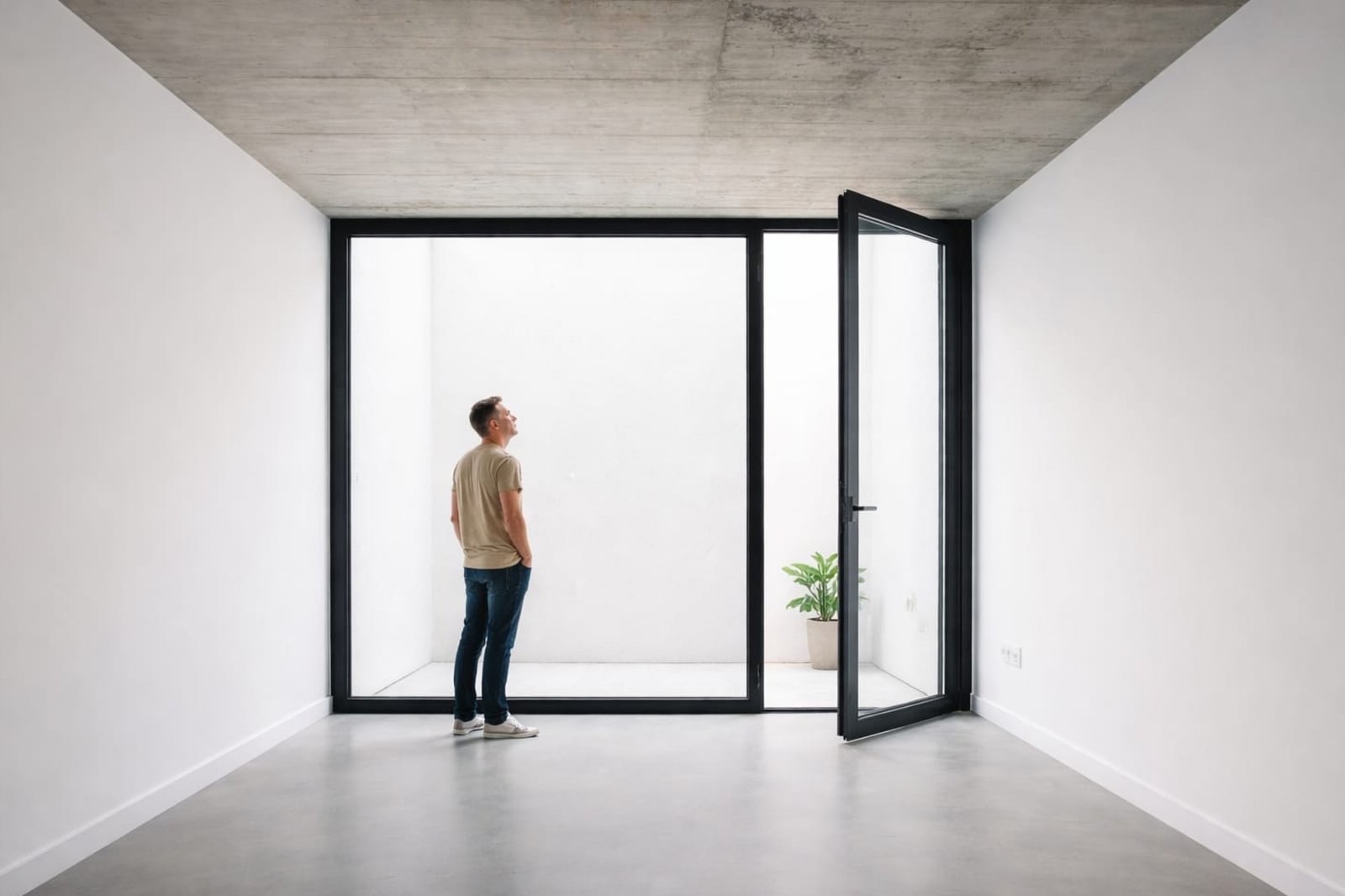

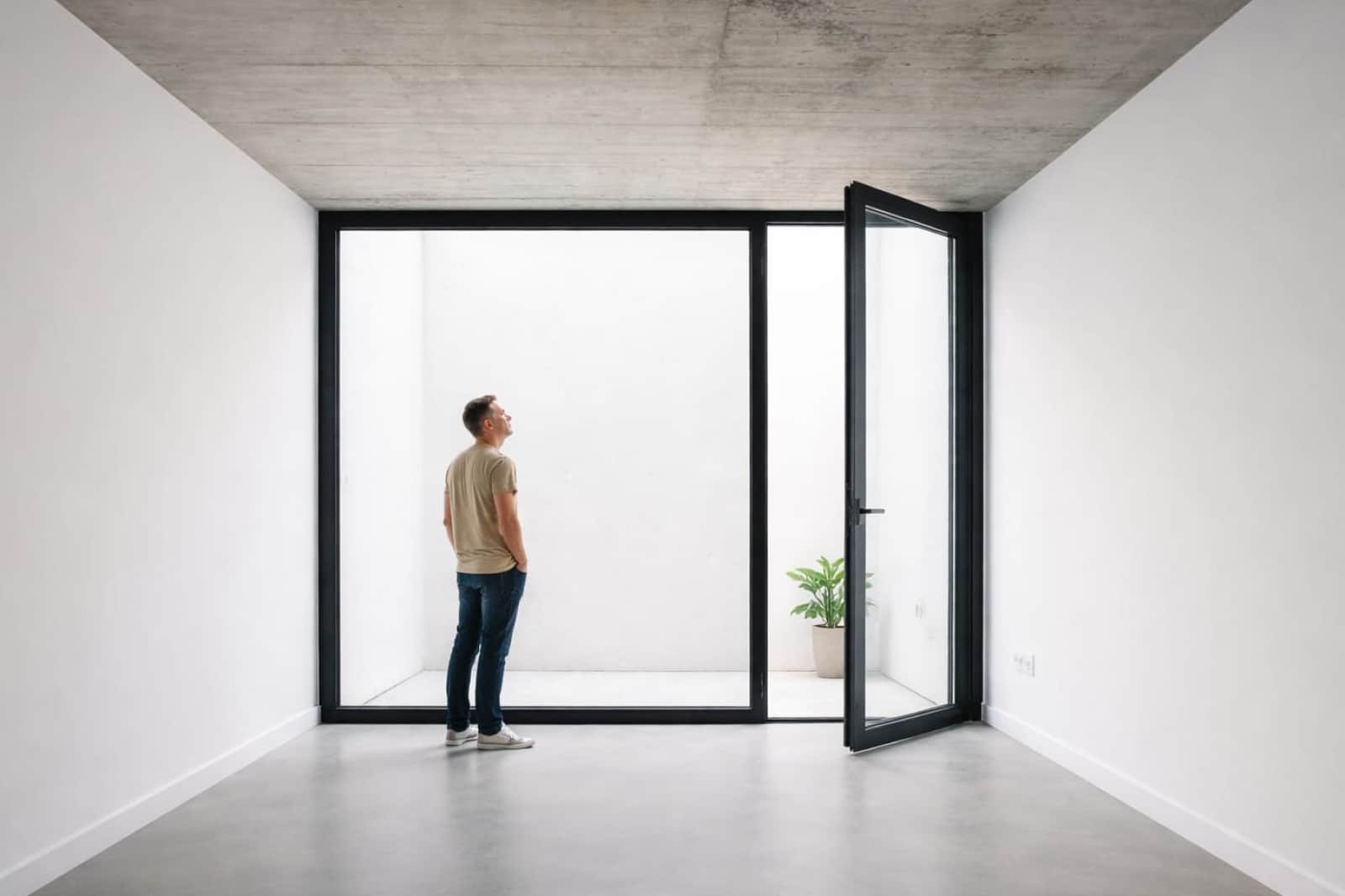

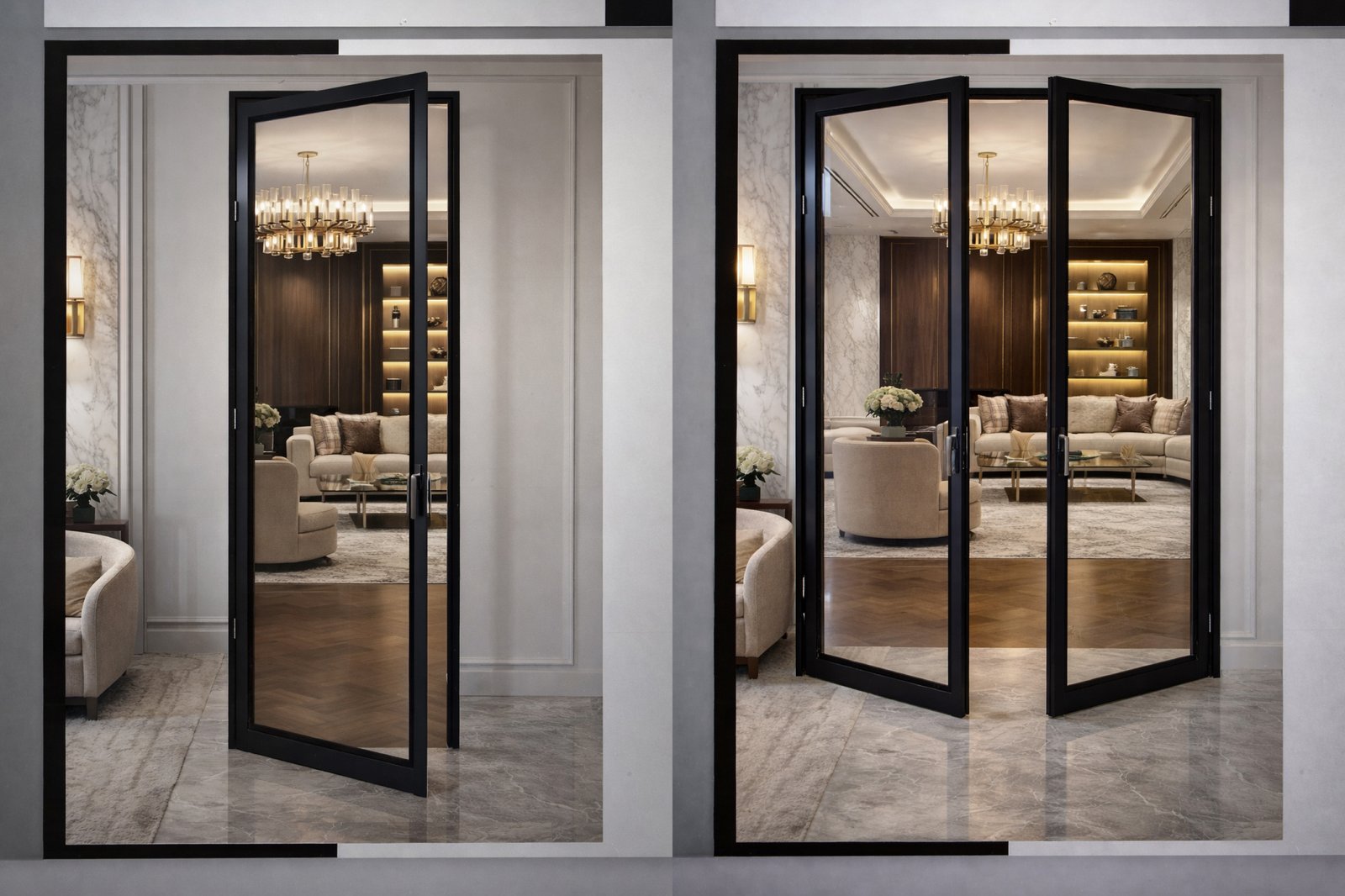

  • Advanced Pivot Door Solutions with Clean Minimal Surface Appearance

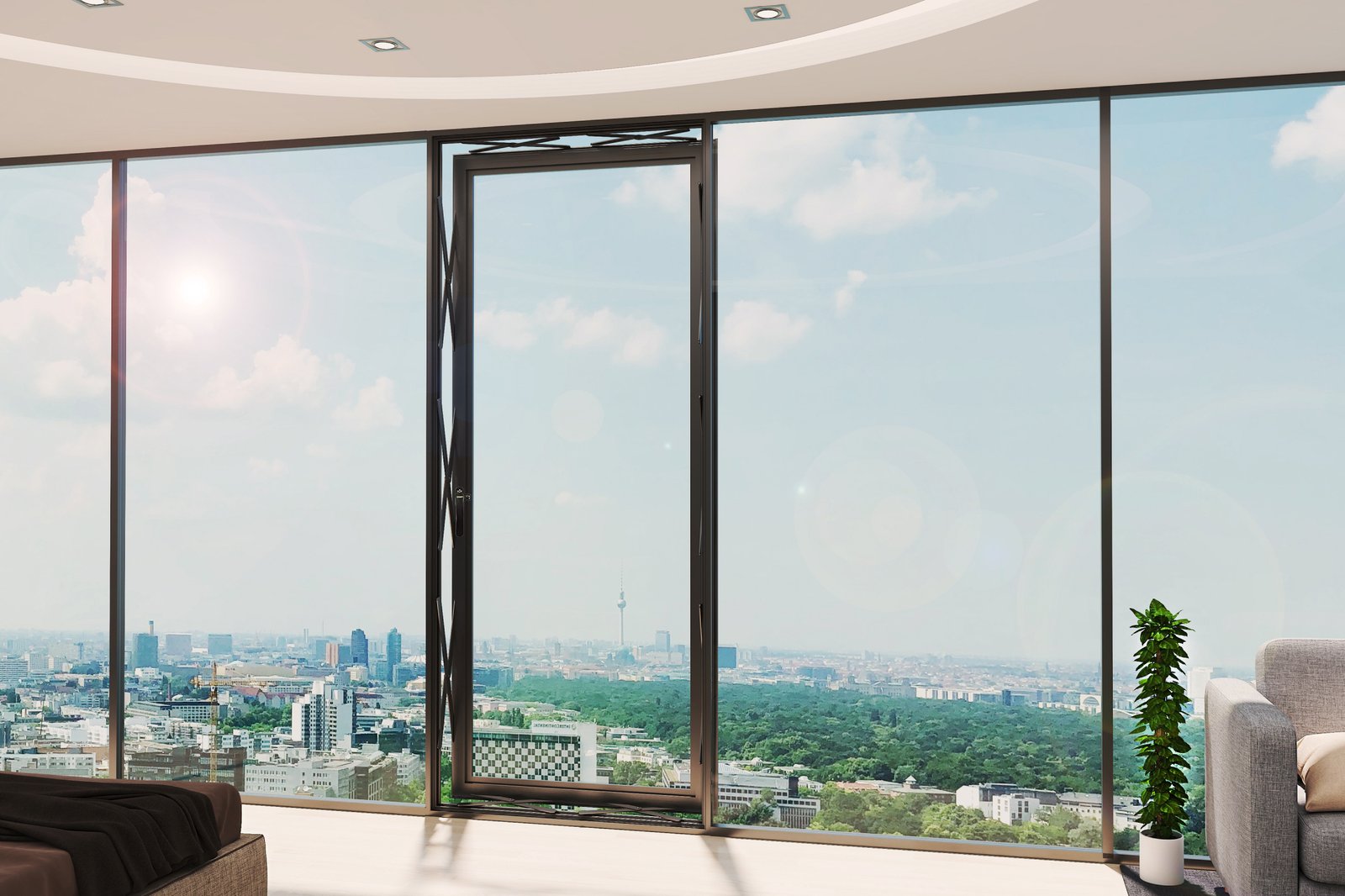

  • Supports Large Openable Panels for Expansive Modern Architecture

  • Intelligent Ventilation Design Ideal for Monsoon and High-Rise Applications

  • Smooth and Stable Operation with Precision-Engineered Hardware Systems

  • Glazing Compatibility up to 32mm for Enhanced Thermal and Acoustic Performance

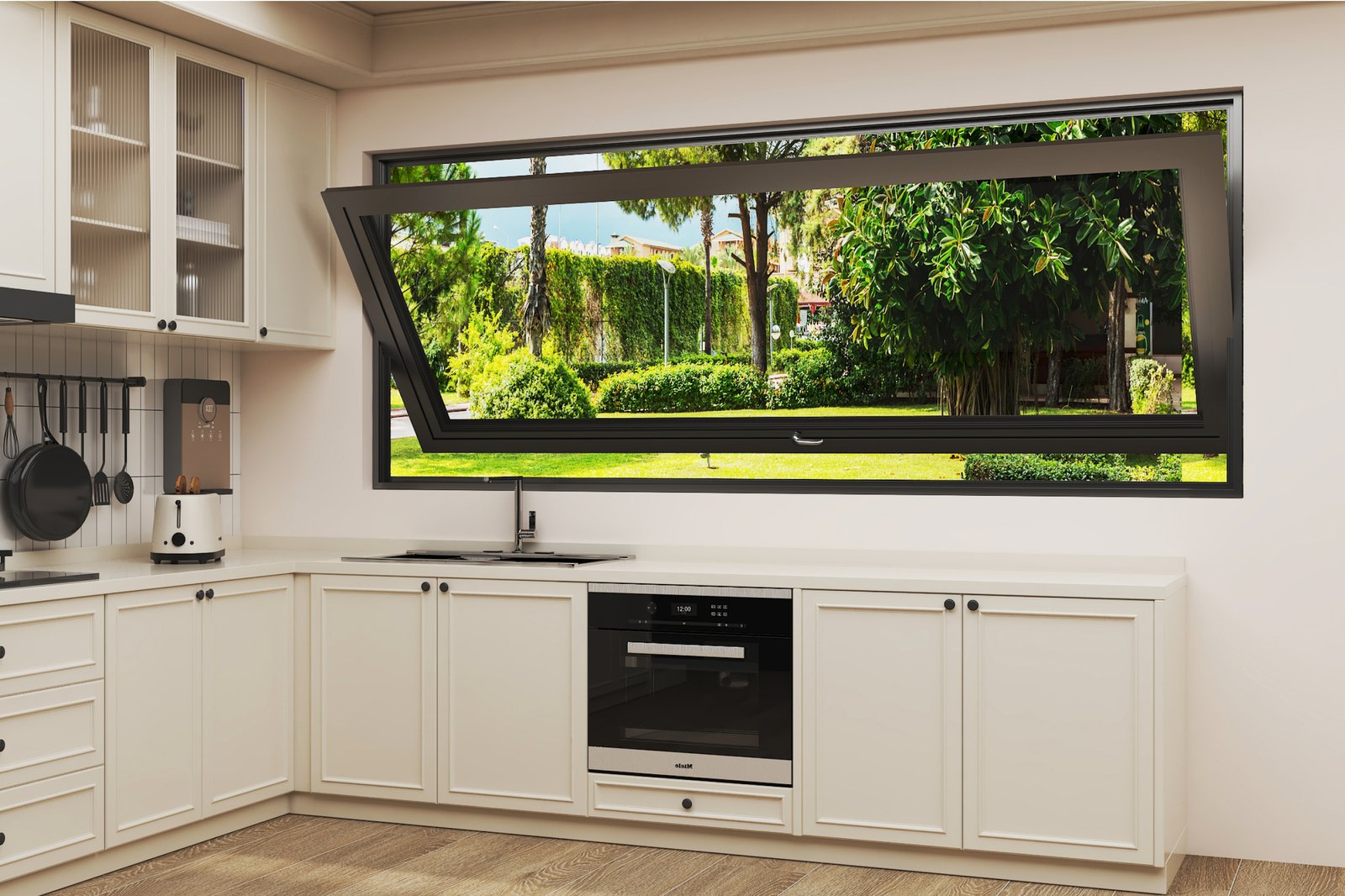

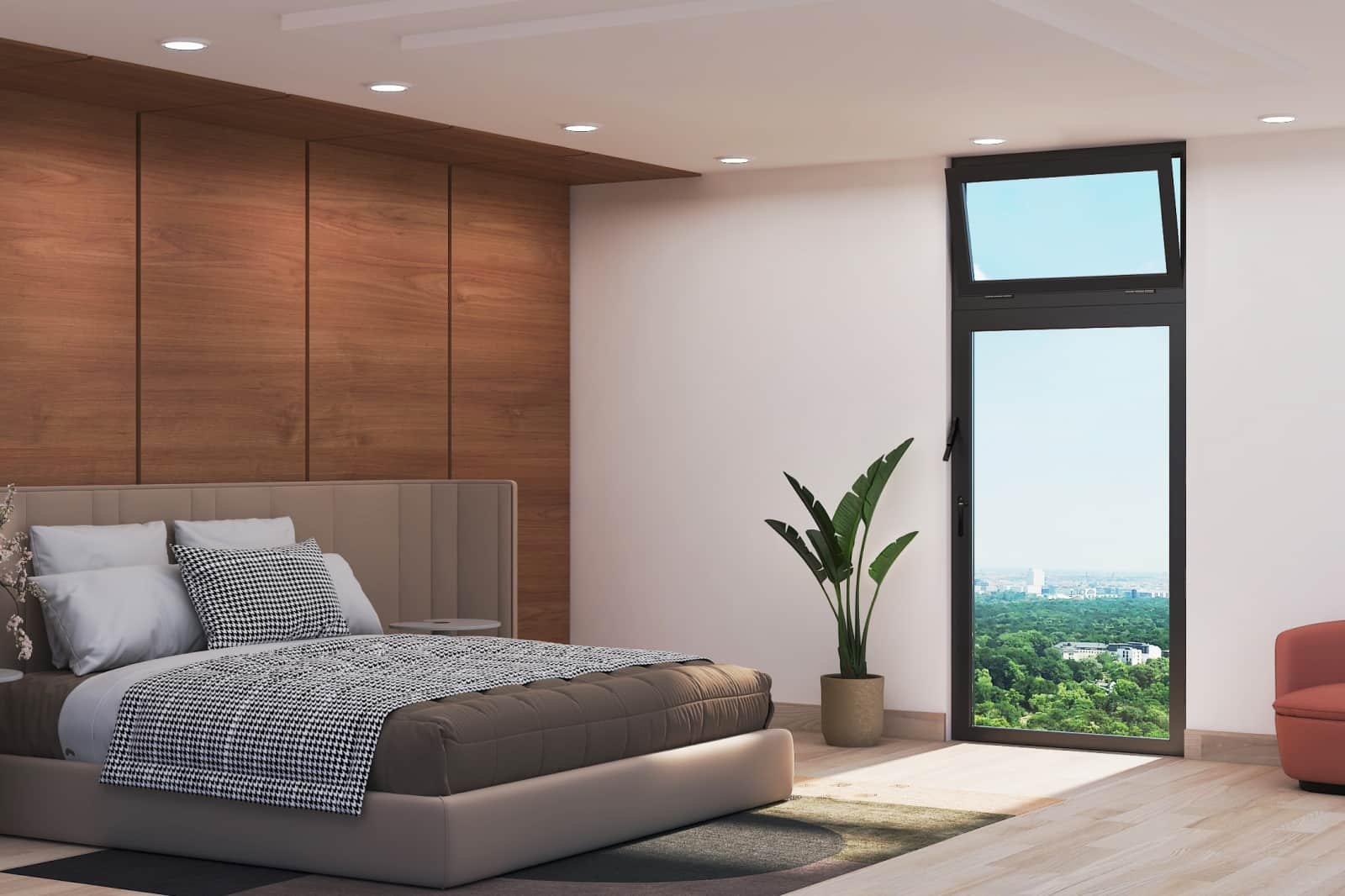

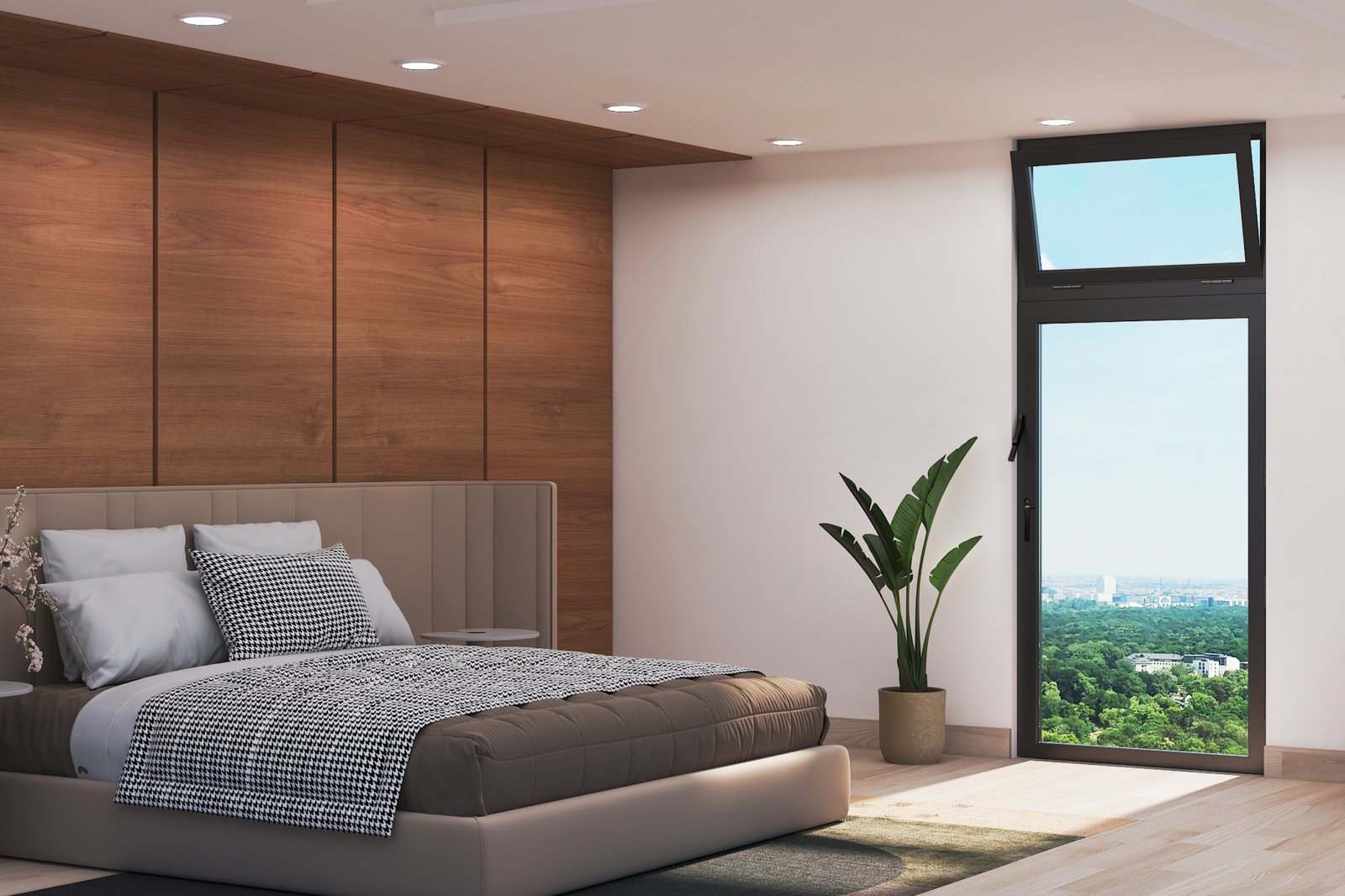

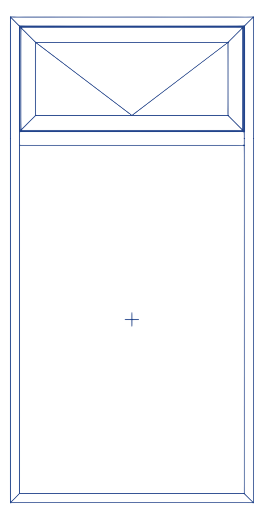

  • Fanlight Window Solutions for Efficient Ventilation in Elevated Spaces

  • Strong Structural Performance with Durable Premium-Grade Aluminium Profiles

  • Combines Architectural Elegance, Functionality, and Everyday Comfort in One System

Alloy grade

6063 – T6

GLAZING

Minimum

4 mm

Maximum

32 mm glass

Possible Typology

Side hung, Top hung, Tilt & turn, Parallel opening, Inward/Outward openings

Frame Door

50 | 70 mm

Frame Window

50 | 46 mm

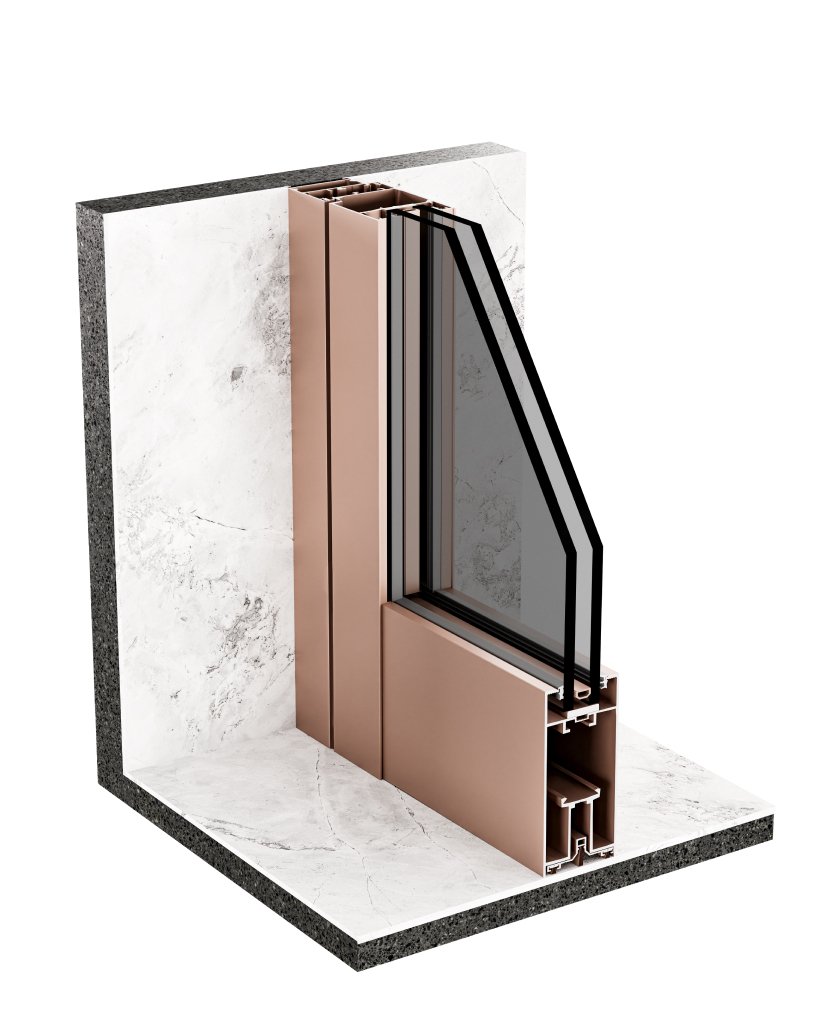

SASH

101 mm

Profile thickness

2 mm

Maximum weight per leaf

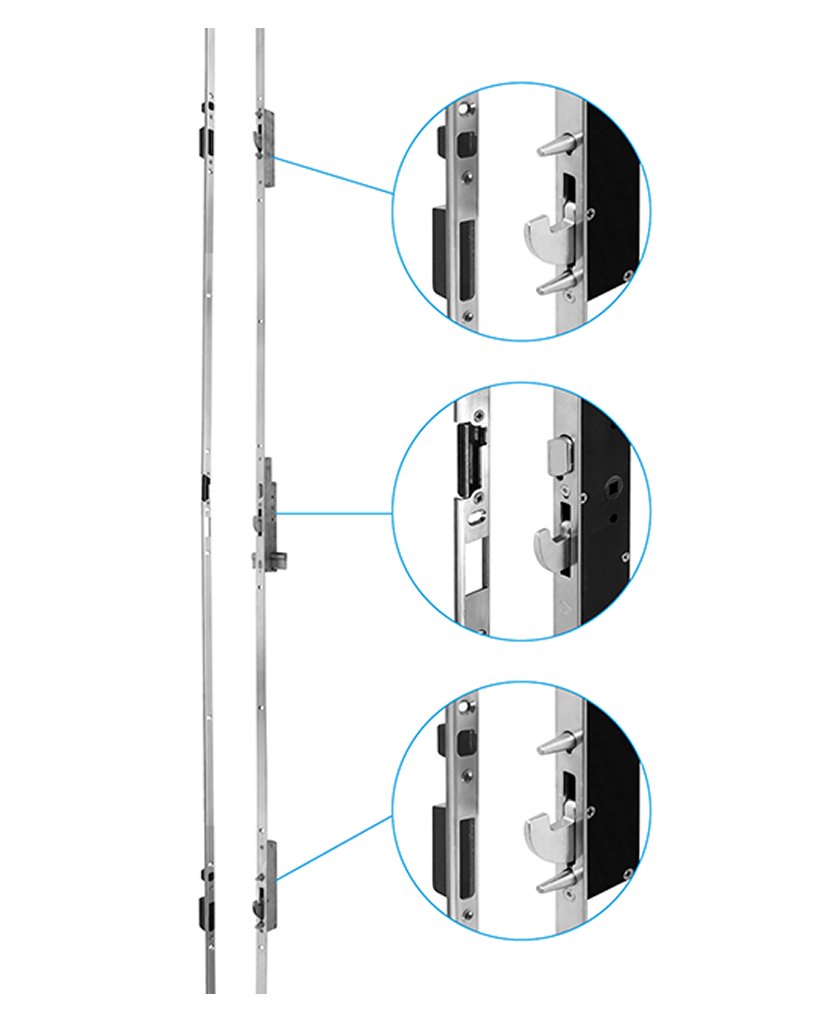

200 Kg with security hardware

Permittable dimensions per leaf (W X H)

1067 mm X 3660 mm with security hardware

Transmittance

Uw from 2.0 (W/m2k)*

*Please consult typology, dimensions & glass

Maximum acoustic insulation

Rw upto 40 dB

Wind resistance

Test BS EN 1026: 2016 (Class 4)

Air permeability

Test BS EN 1027: 2016 (PA 600, Classification 9A)

Water tightness

As per BS EN 12210 (2.8 kPA)

Product Brochure

Master Catalogue

Technical Sheet DWG

Sections

BIM

Key Advantages

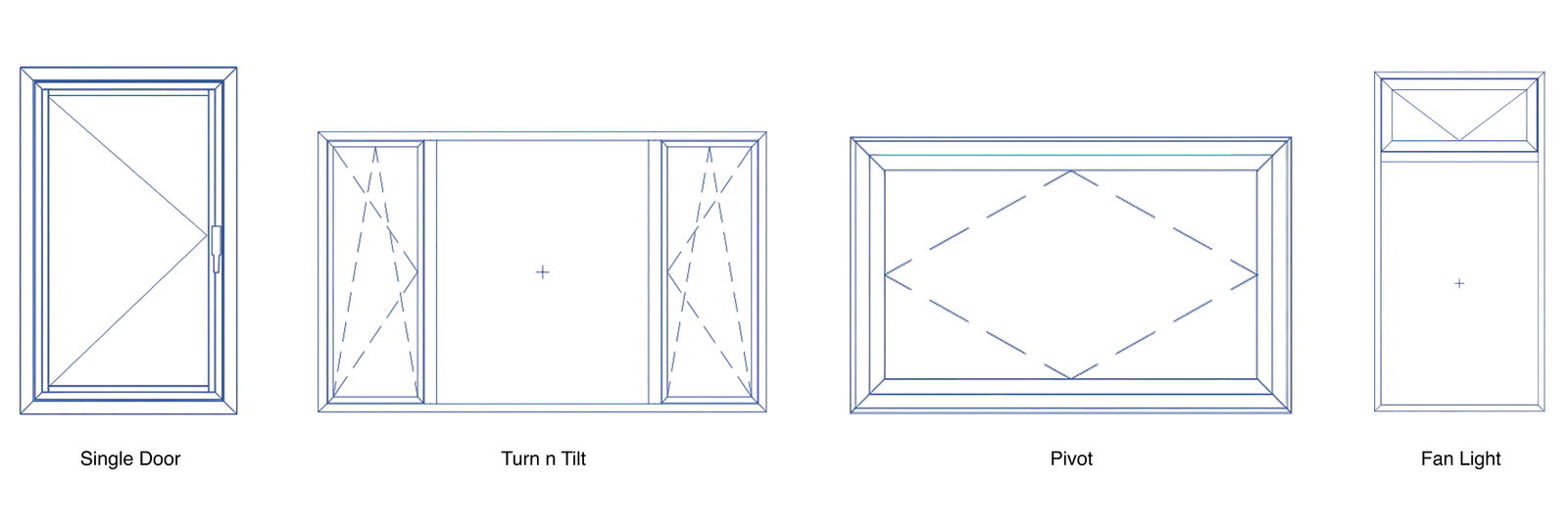

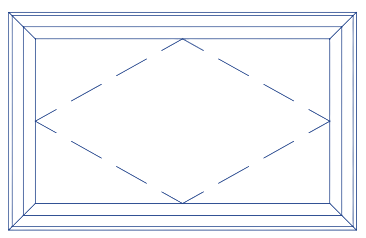

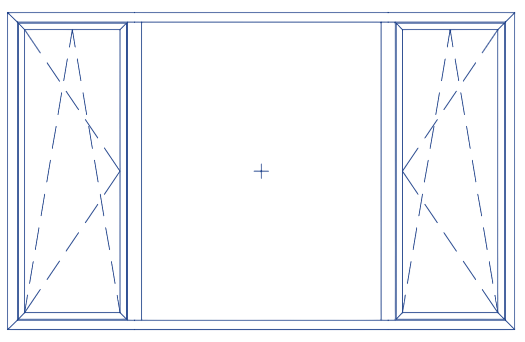

Opening Possibilities

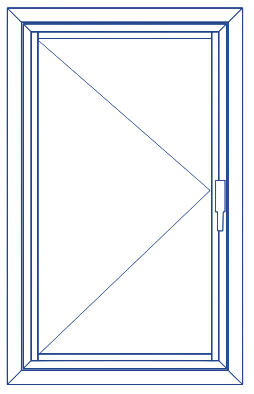

Side Hung

*Consult maximum weight and dimensions according to typologies
