GCW3500 Slimline

Slim Façade, Strong Performance

GREFET GCW3500 is a next-generation aluminium curtain wall system focused on achieving sleek façades with high structural performance. At just 35mm sightline it increases glass area, daylight and design modernity. Engineered for durability, it provides 80mm and120mm mullion depths ideal for mid-rise and high-rise applications. GCW 3500 - designed for aluminium façade systems for commercial buildings provides an optimal energy efficiency, wind load and stability. It’s a performance curtain wall system for the architect who wants elegant design with dependable engineering.

  • Ultra-slim curtain wall system with only 35mm visible front face for a clean and premium façade appearance

  • Designed specially to support modern architectural aesthetics with sleek and minimal sightlines

  • Value-for-money solution offering an ideal balance of performance, design, and project economy

  • Available in multiple mullion depth options to suit different structural and design requirements

  • Suitable for commercial buildings, offices, malls, and modern front façade applications

  • Engineered for clean elevation lines, enhanced natural light, and contemporary glass façade design

GLAZING

Minimum

6 mm

Maximum

32 mm

Possible Typology

1, 2, 3, 4, 6 Leaf

Frame Width

Monorail

97 mm / 45 mm

2 track

101 mm / 48 mm

3 track

162 mm / 48 mm

SASH

47 mm

Maximum weight per leaf

250 Kg

Central interlocking

30 mm

Multi-locking system with key option

Yes

Permittable dimensions per leaf (W X H)

1525 mm × 3350 mm

Transmittance

Uw from 3.2 (W/m2k)*

*Please cross check typology, dimensions & glass

Maximum acoustic insulation

Rw = 37 dB

Wind resistance

2700Pa, EN 13116

Air permeability

Class A1, EN 12152

Water tightness

Class RE 1050, EN 12154

Product Brochure

Master Catalogue

Technical Sheet DWG

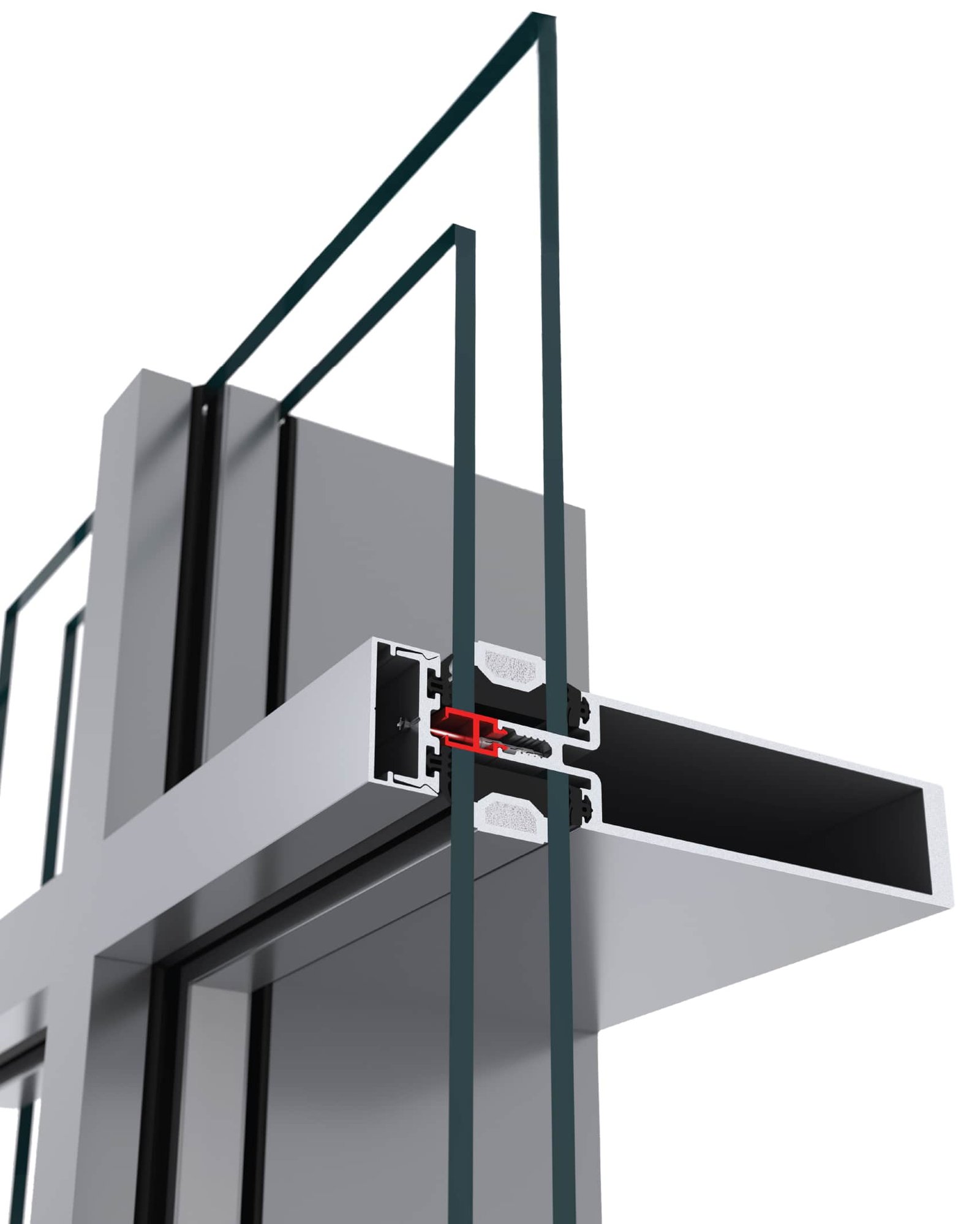

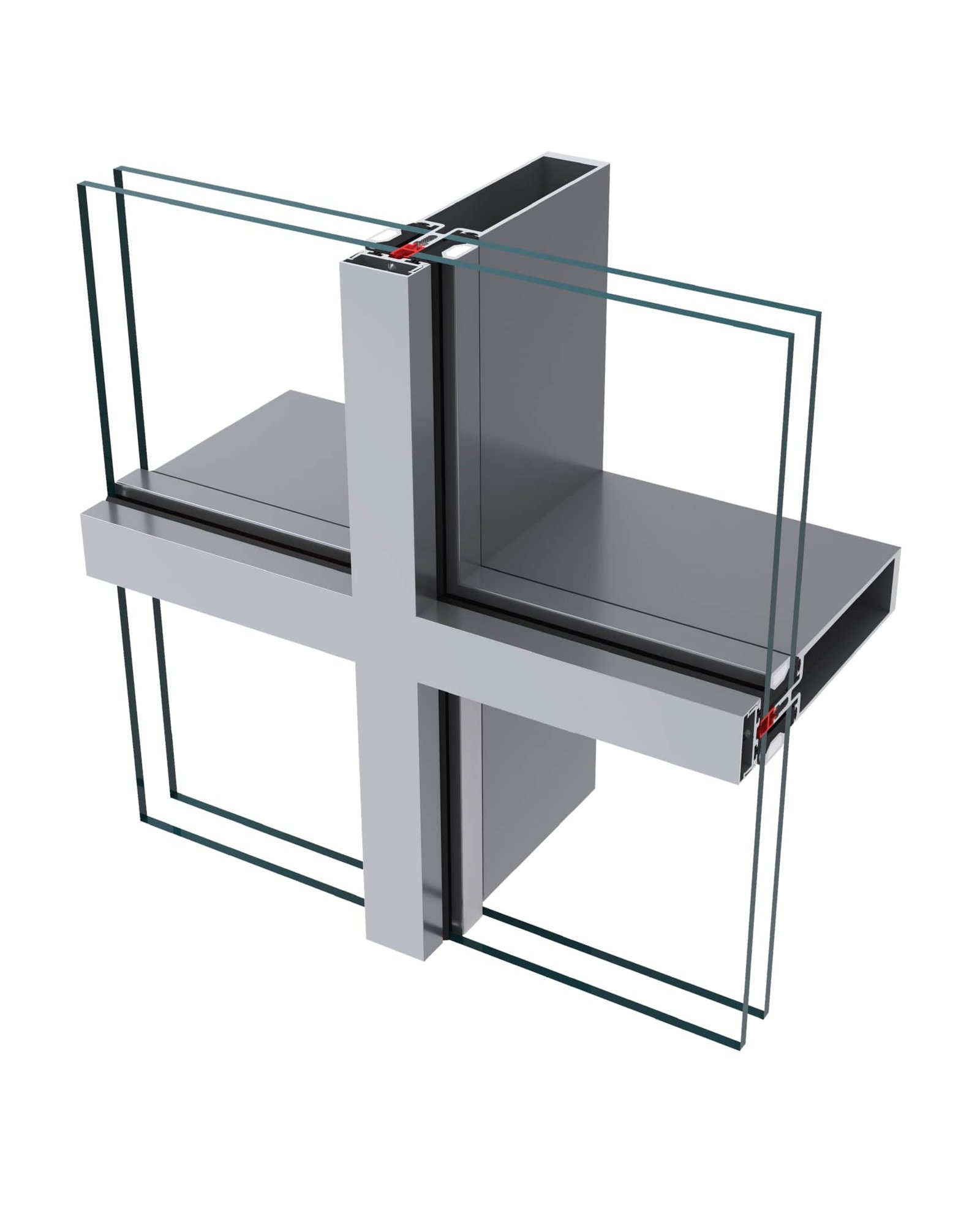

Sections

BIM

Key Advantages

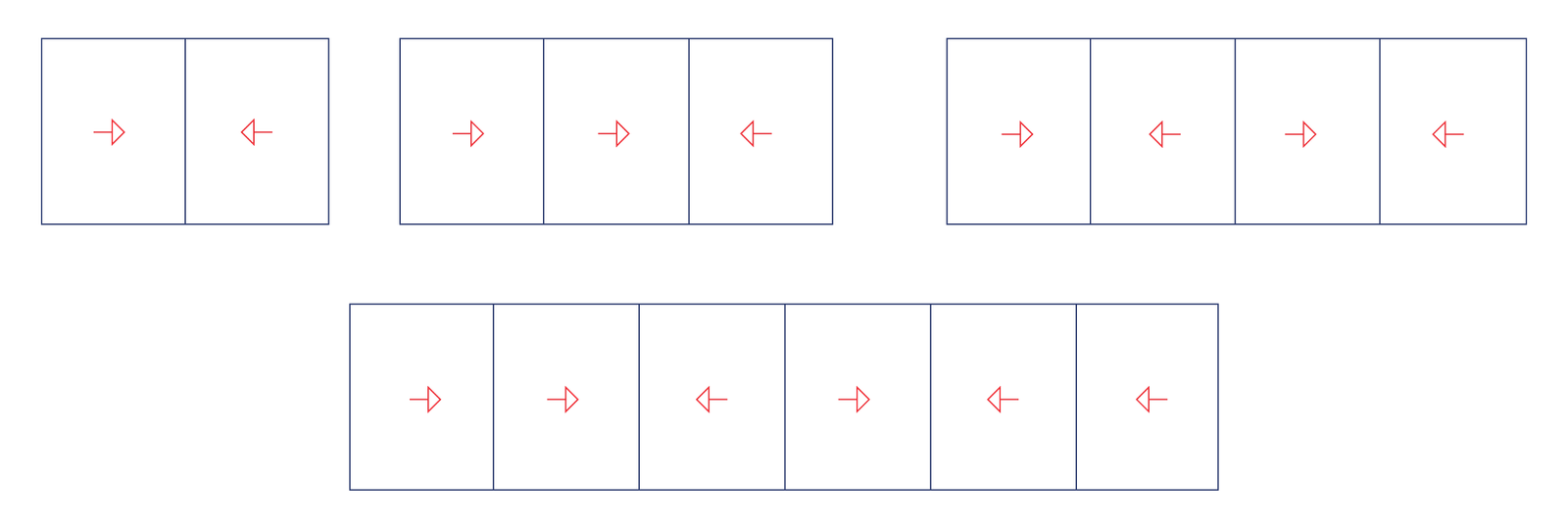

Opening Possibilities

*Consult maximum weight and dimensions according to typologies
