CSP100

Elevate Living with High-Performance Hinged Systems

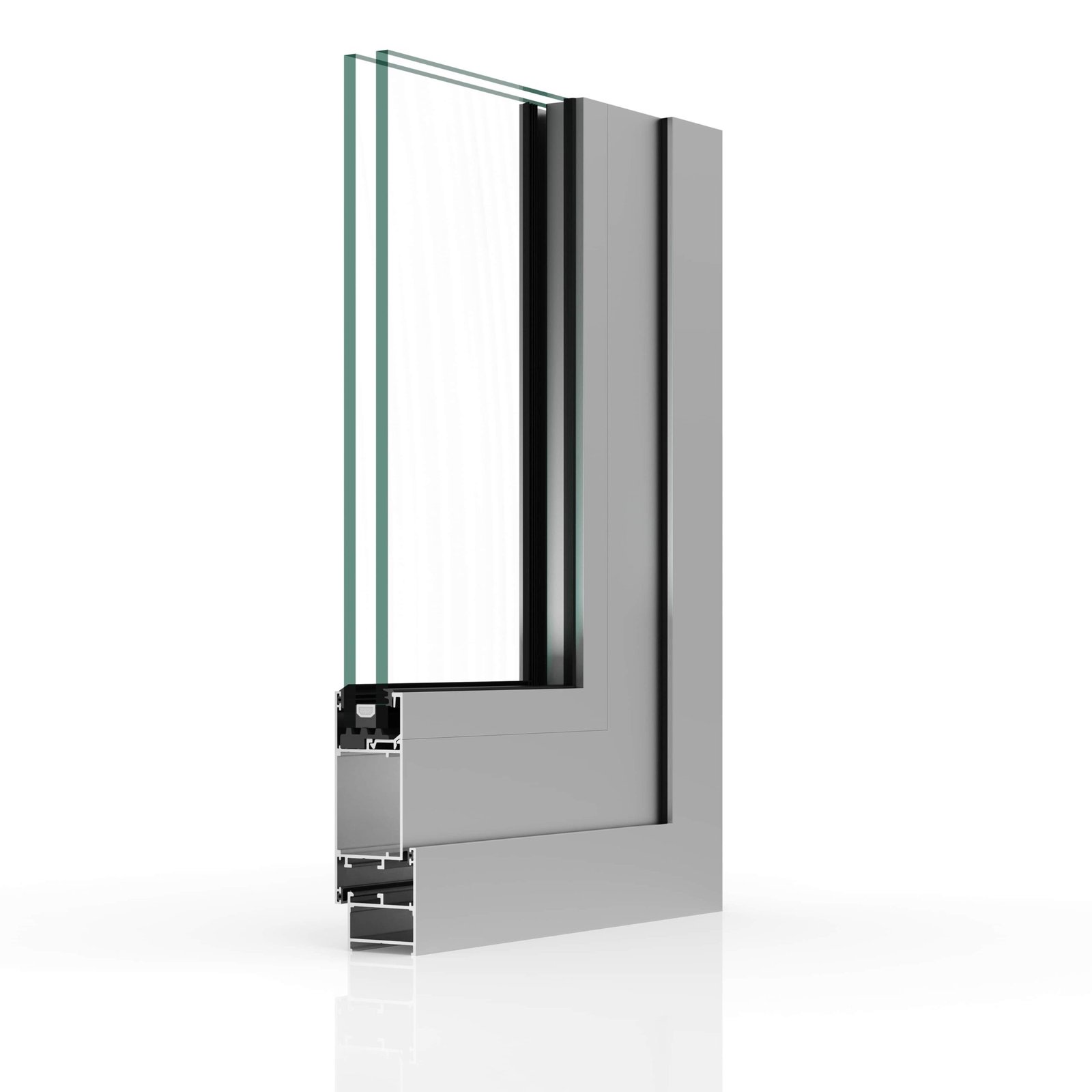

The Grefet CS40 Casement Series is a smart and cost-effective solution developed for high-rise and mass housing projects. Compared to the CS50 series, CS40 offers a more economical profile design without compromising durability and performance. It supports glass options from 5mm to 24mm, making it suitable for a wide range of residential and commercial applications. The system comes with both single locking and multi-point locking options, allowing flexibility based on project requirements and budget. Designed for efficient fabrication and fast installation, the CS40 series is an ideal choice for large-scale projects seeking modern aesthetics, reliable performance, and optimized project costs.

  • Casement system designed specially for high-rise and mass housing projects

  • Maintaining durability and performance

  • Supports glass thickness from 5mm to 24mm for versatile application requirements

  • Available with both single locking and multi-point locking options based on project needs

  • Engineered for efficient fabrication, faster installation, and large-scale production applications

Alloy grade

6063 – T6

GLAZING

Minimum

5 mm

Maximum

24 mm

Possible Typology

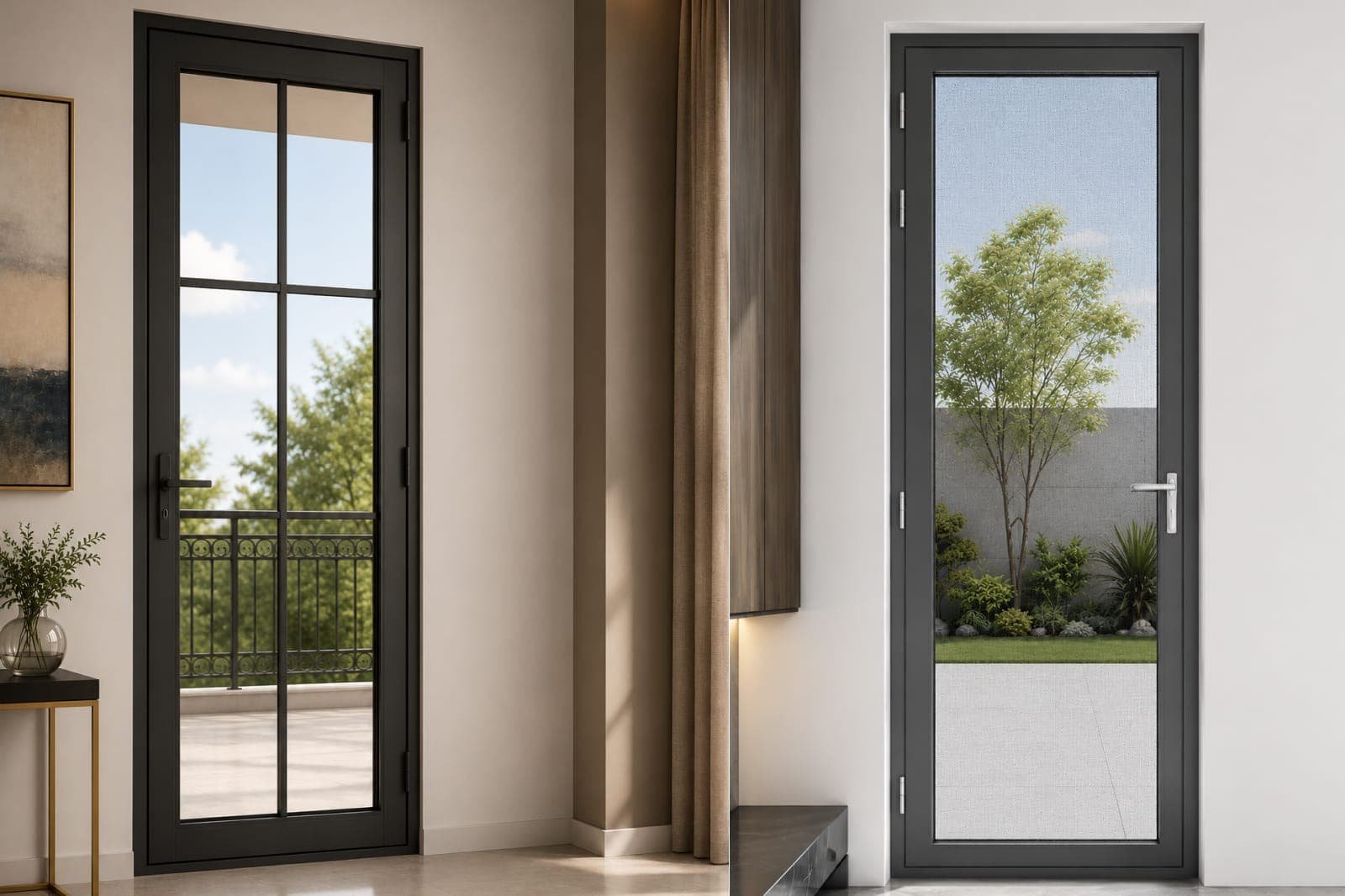

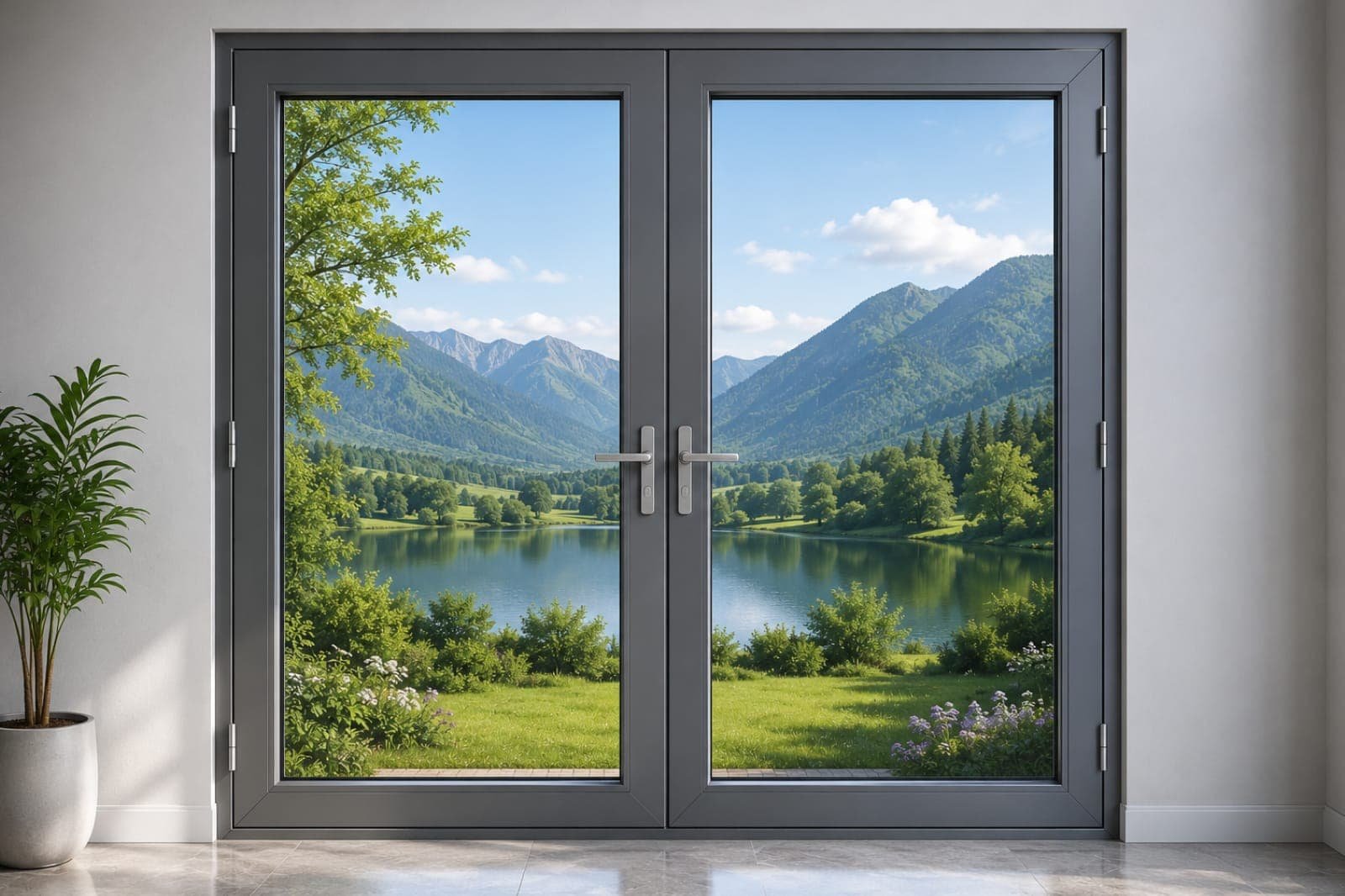

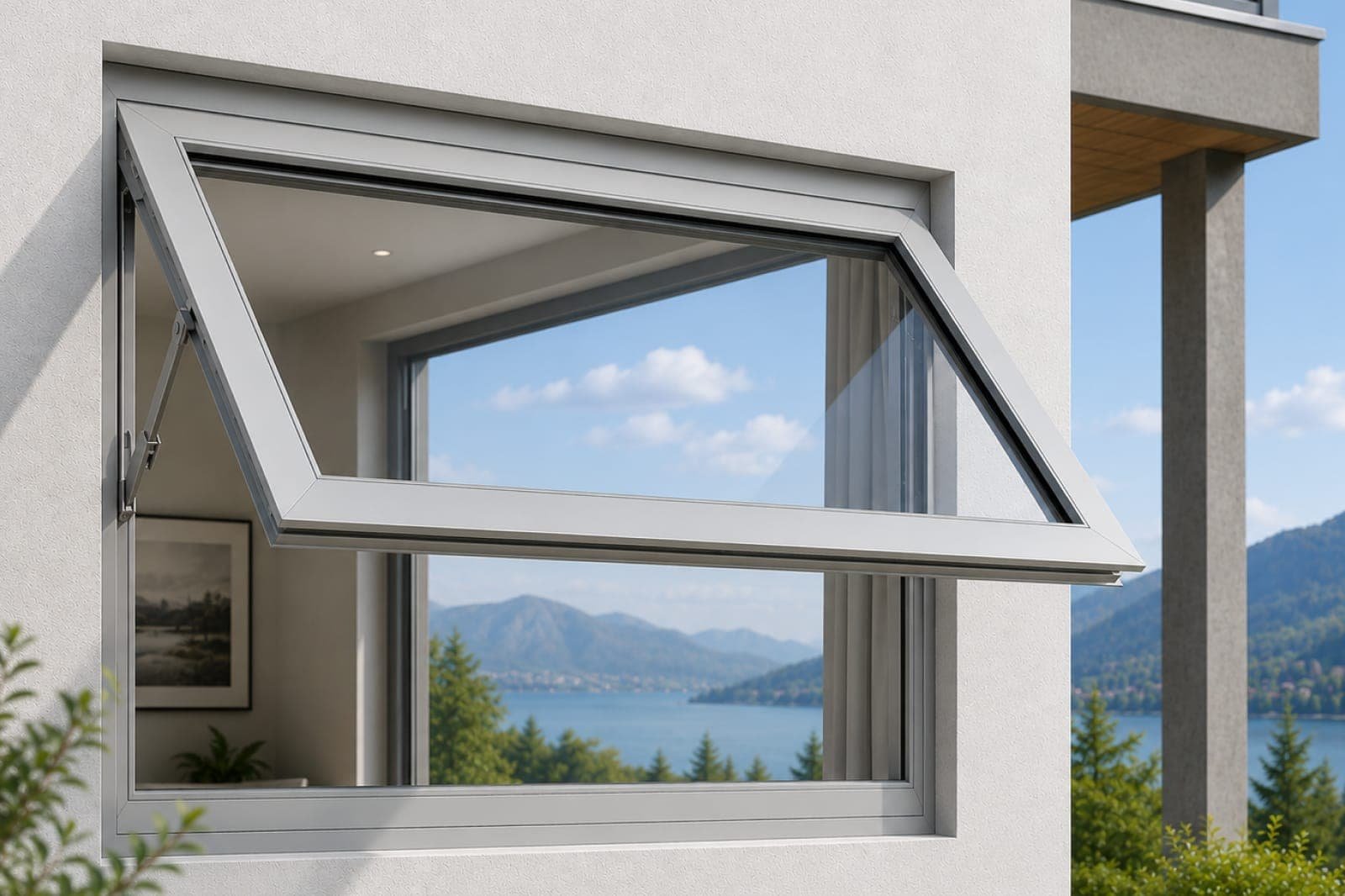

Side hung, Top hung, Tilt & turn, Parallel opening, Inward/Outward openings

Frame Door

100 mm

Frame Window

79 mm

SASH

40 mm

Profile thickness

1.4 - 1.5 mm

Maximum weight per leaf

120 Kg

Permittable dimensions per leaf (W X H)

1000 x 2400 mm

Transmittance

Uw from 2.0 (W/m2k)*

*Please consult typology, dimensions & glass

Maximum acoustic insulation

Rw upto 39 dB

Wind resistance

Class C5

Air permeability

Class 4

Water tightness

Class 9A

Product Brochure

Master Catalogue

Technical Sheet DWG

Sections

BIM

Key Advantages

Opening Possibilities

*Consult maximum weight and dimensions according to typologies
