LS400

Heavy-Duty Performance for Large Openings

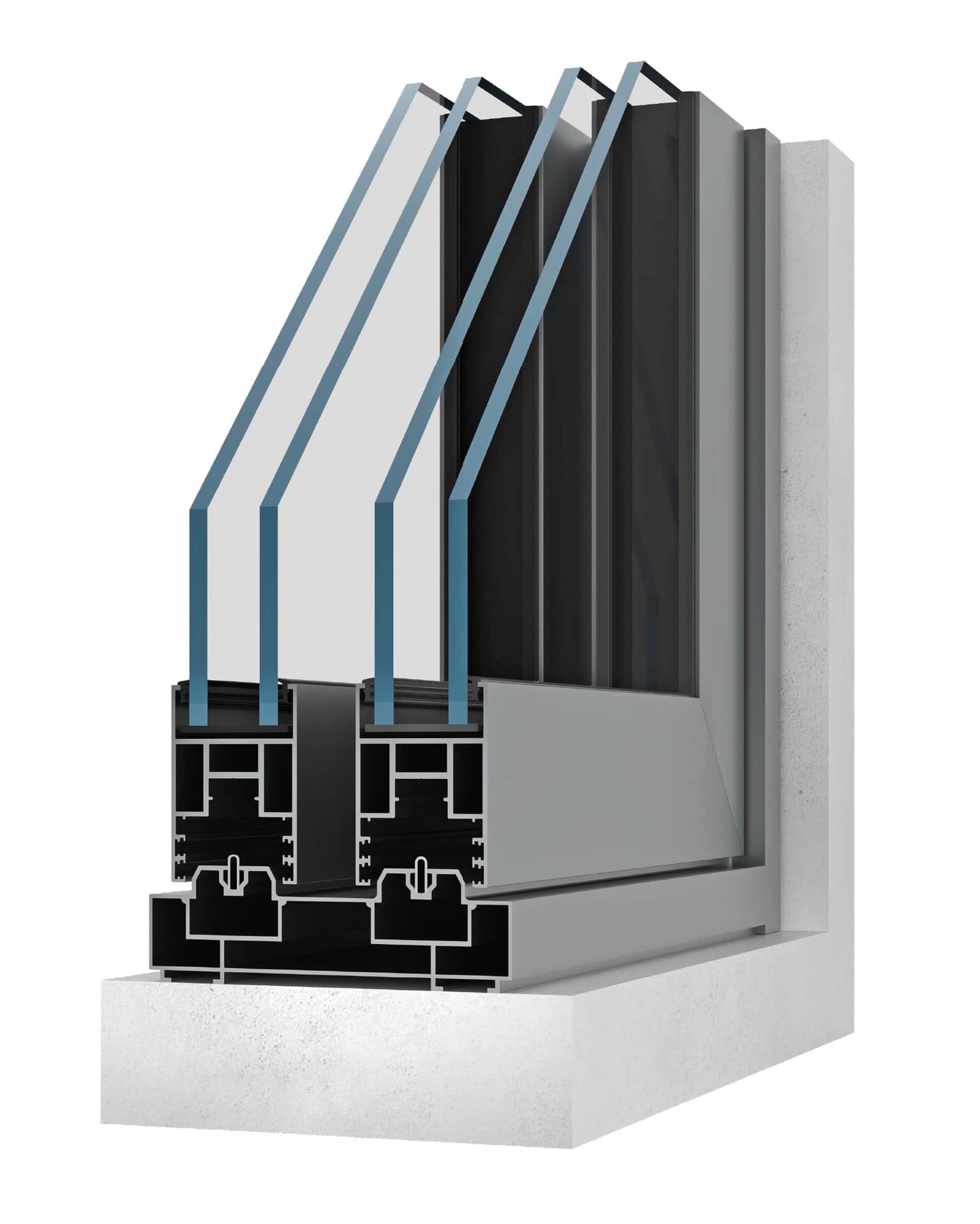

LS400 is a strong system aluminium sliding window door system designed for large openings and heavy glass applications. Made from high-quality 6063-T6 alloy, it can accommodate heavy sash weights (up to 400 kg) whilst allowing smooth and controlled sliding. The 25mm interlock with the multi-point locking makes it stronger and secure. LS400 suits 2 and 3 track solutions with glazing from 18-38 mm, ideal for aluminium windows and doors within residential and commercial applications. It is a performance sliding system in aluminium tested for air, water and wind resistance.

  • Designed for extra-large and high-opening applications

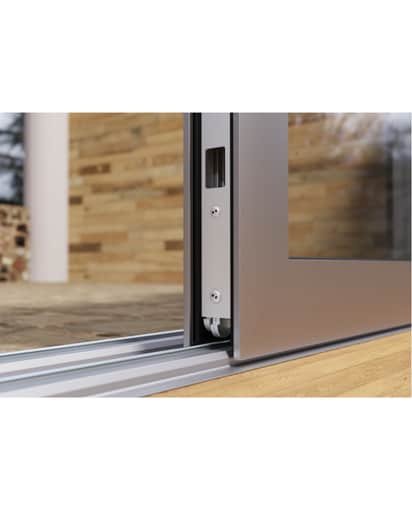

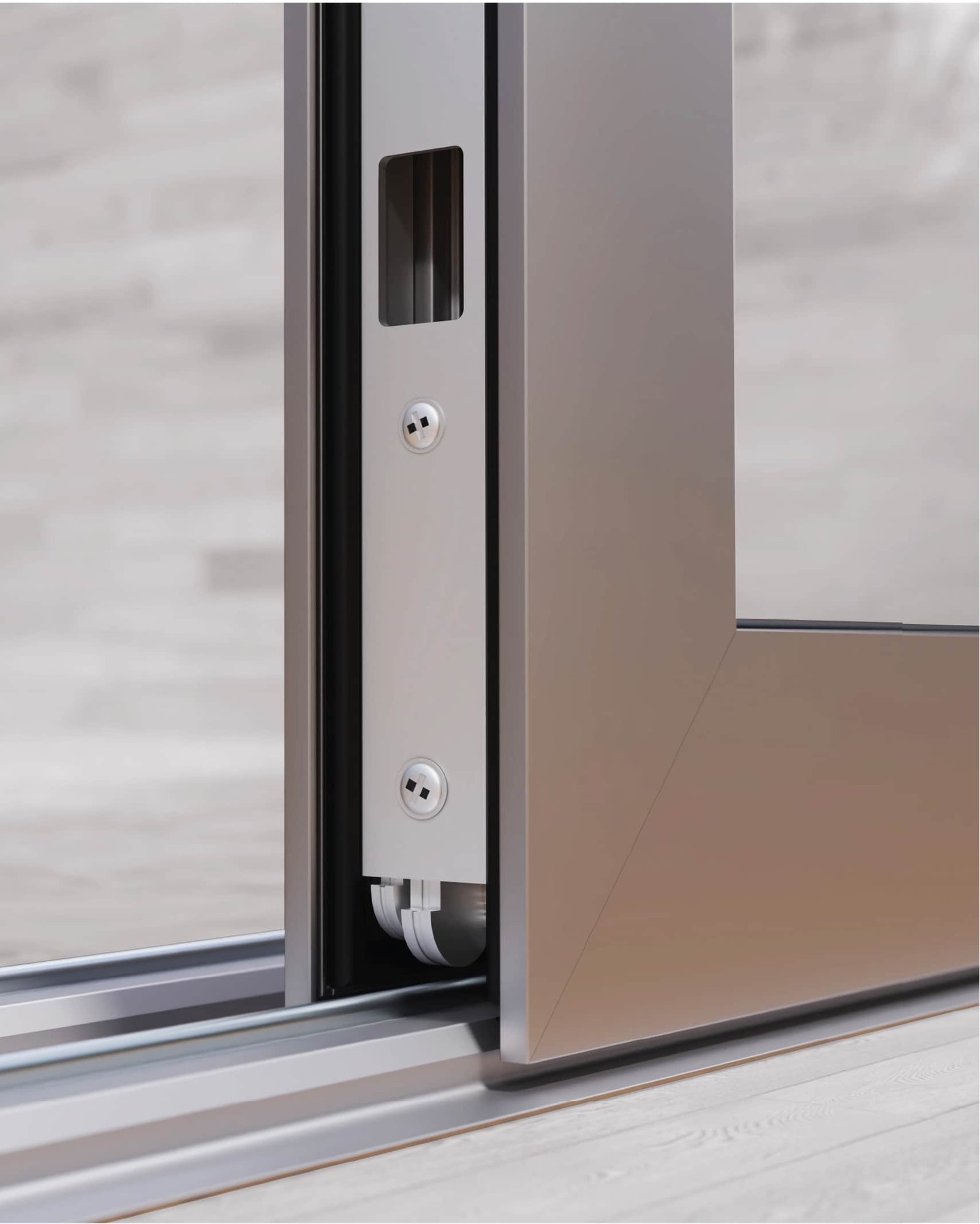

  • Sleek and slim central interlock design

  • Concealed frame options for a clean minimal look

  • Integrated gutter system for efficient water drainage

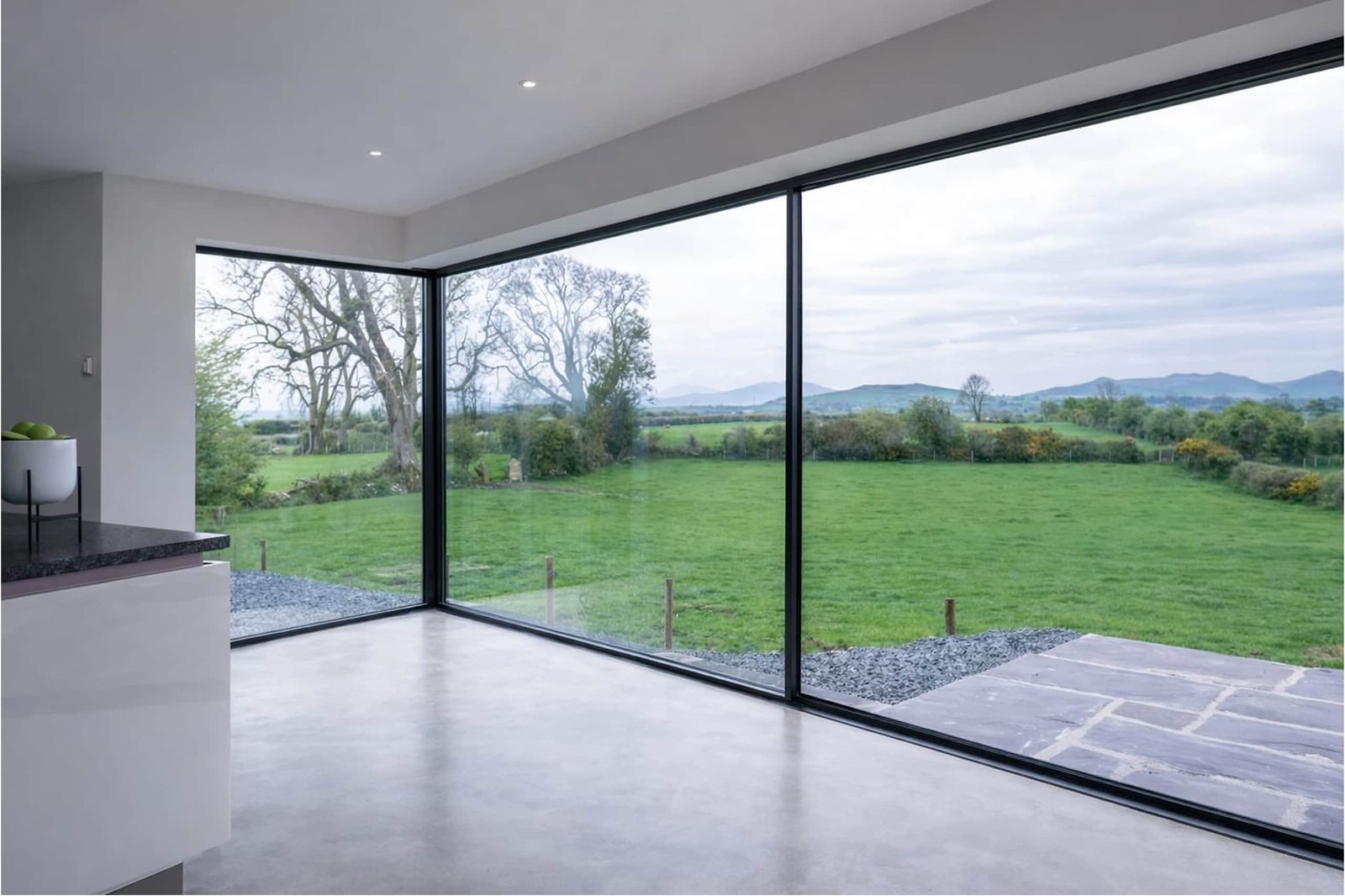

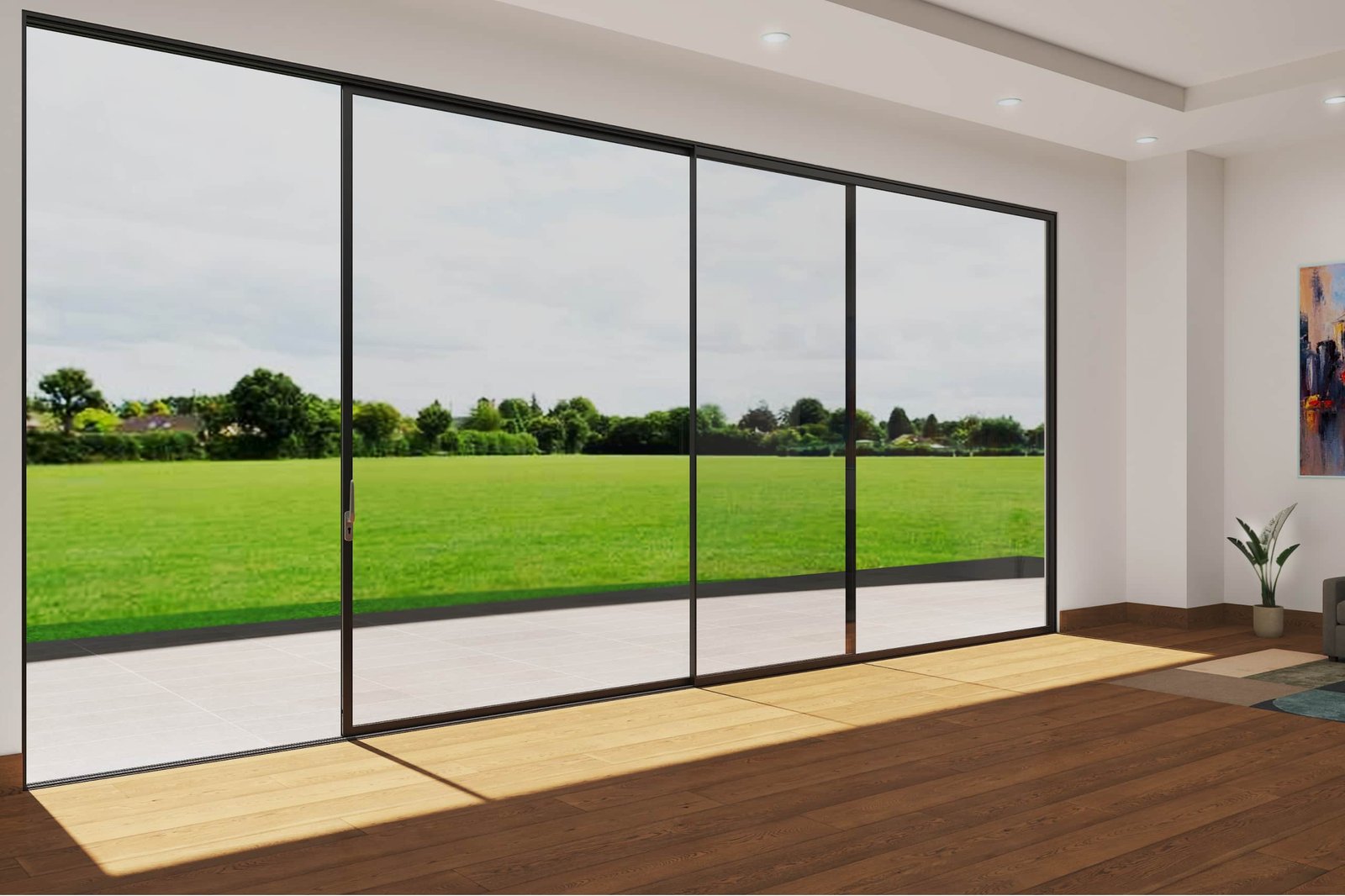

  • Maximized glass area for panoramic outdoor views

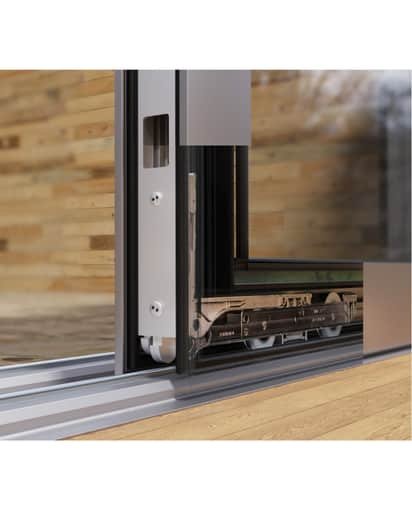

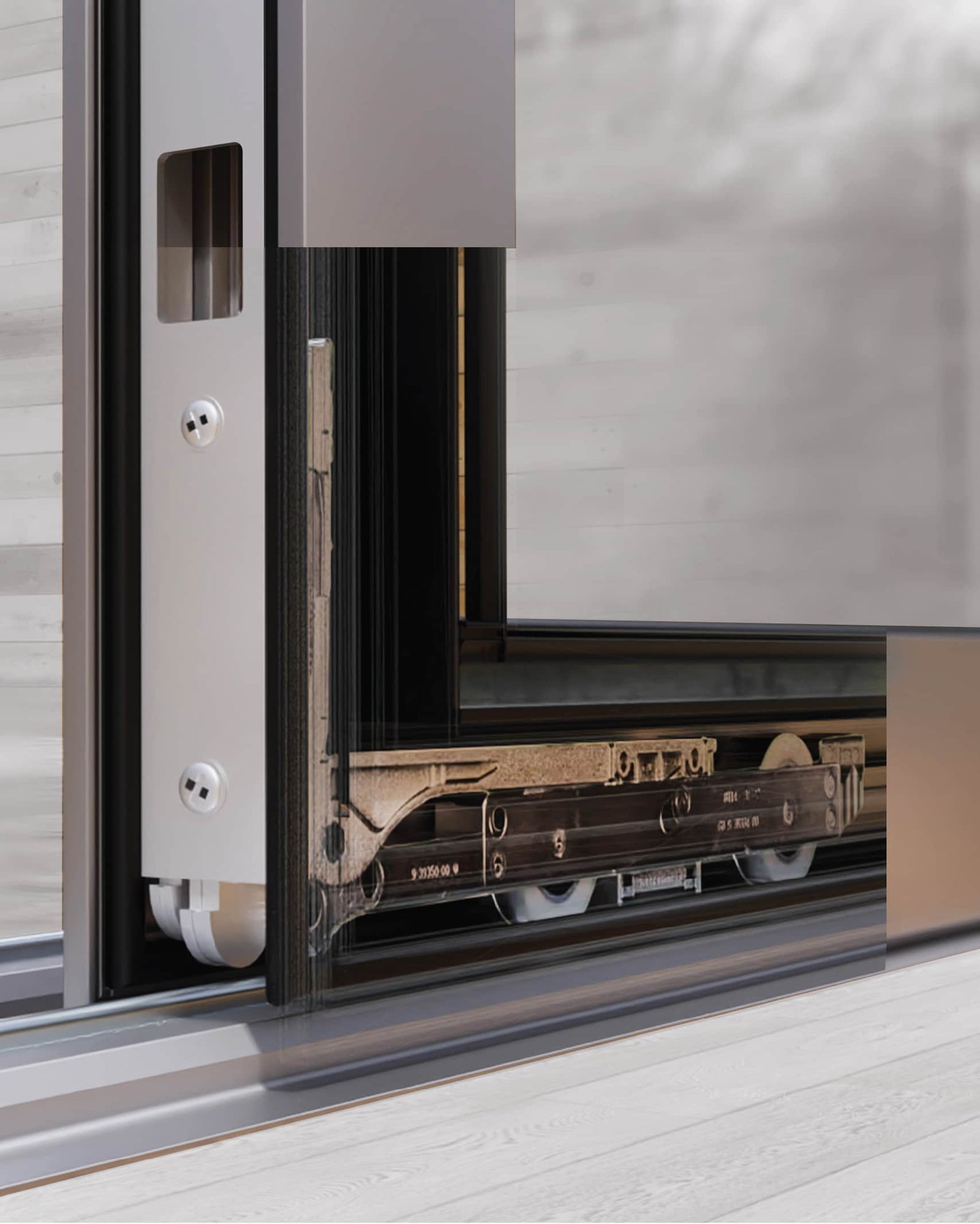

  • Smooth sliding performance with precision-engineered rollers

  • Strong structural stability for tall shutters

  • Premium minimalist aesthetics for modern architecture

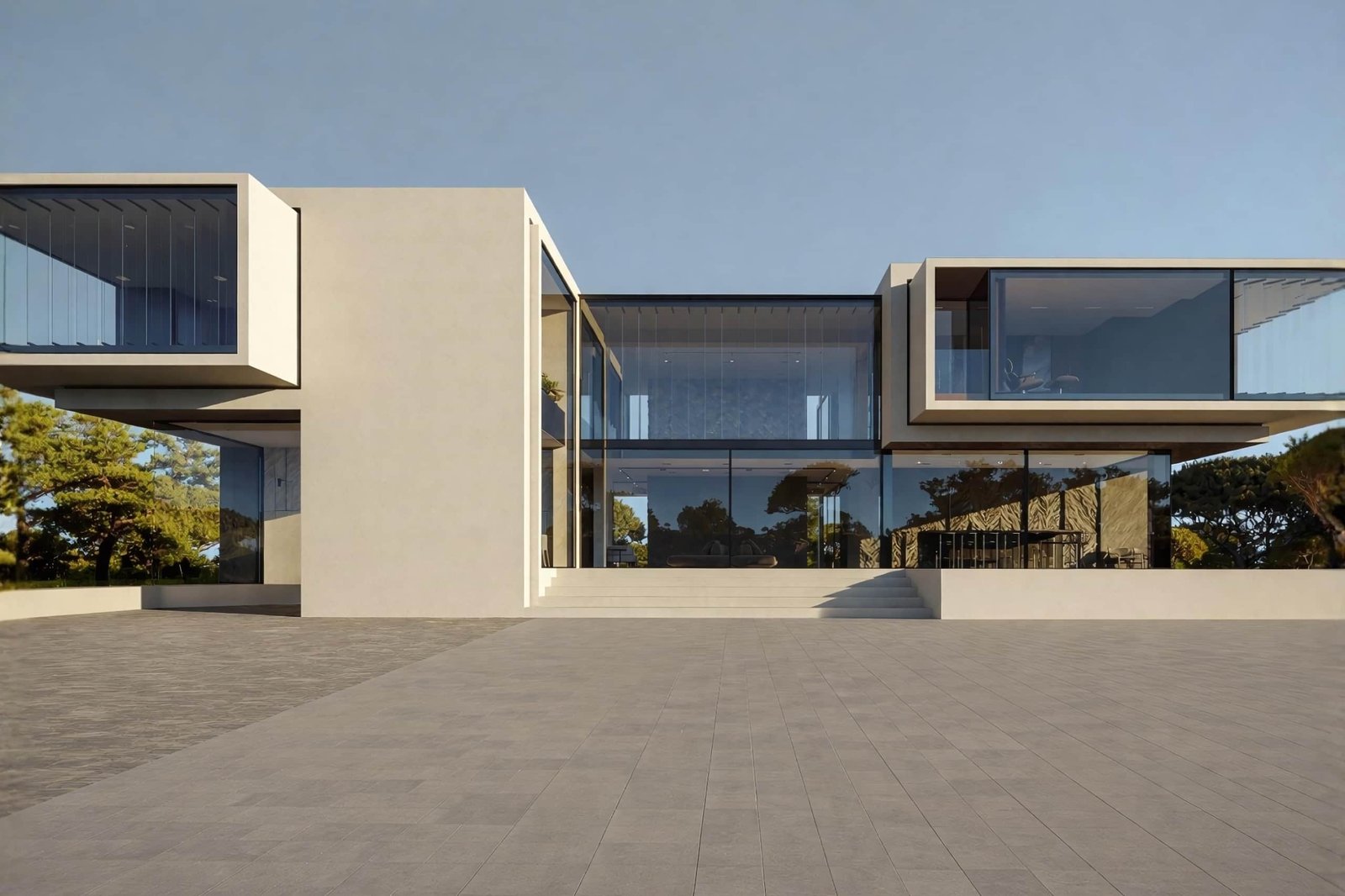

  • Ideal for luxury villas, facades, and high-rise projects

  • Combines elegance, performance, and durability in one system

GLAZING

Minimum

18 mm

Maximum

38 mm glass

Possible Typology

2, 3, 4, 6 leaf

Frame Width

2 track

155 mm

3 track

235 mm

Frame depth

35 - 58 mm

SASH

55 mm

Profile thickness

1.5 to 5mm

Maximum weight per leaf

400 Kg

Central interlocking

25 mm

Multi-locking system with key option

Yes

Permittable dimensions per leaf (W X H)

1800 X 4260

Transmittance

Uw from 2.9 (W/m2k)*

*Please consult typology, dimensions & glass

Maximum acoustic insulation

Rw = 42 dB

Wind resistance

As per BS EN 12211 (PA 3750, Class C5)

Air permeability

Test BS EN 1026:2016 (PA 600, Class4)

Water tightness

Test BS EN 1027:2016 (PA 300, Classification 7A)

Product Brochure

Master Catalogue

Technical Sheet DWG

Sections

BIM

Key Advantages

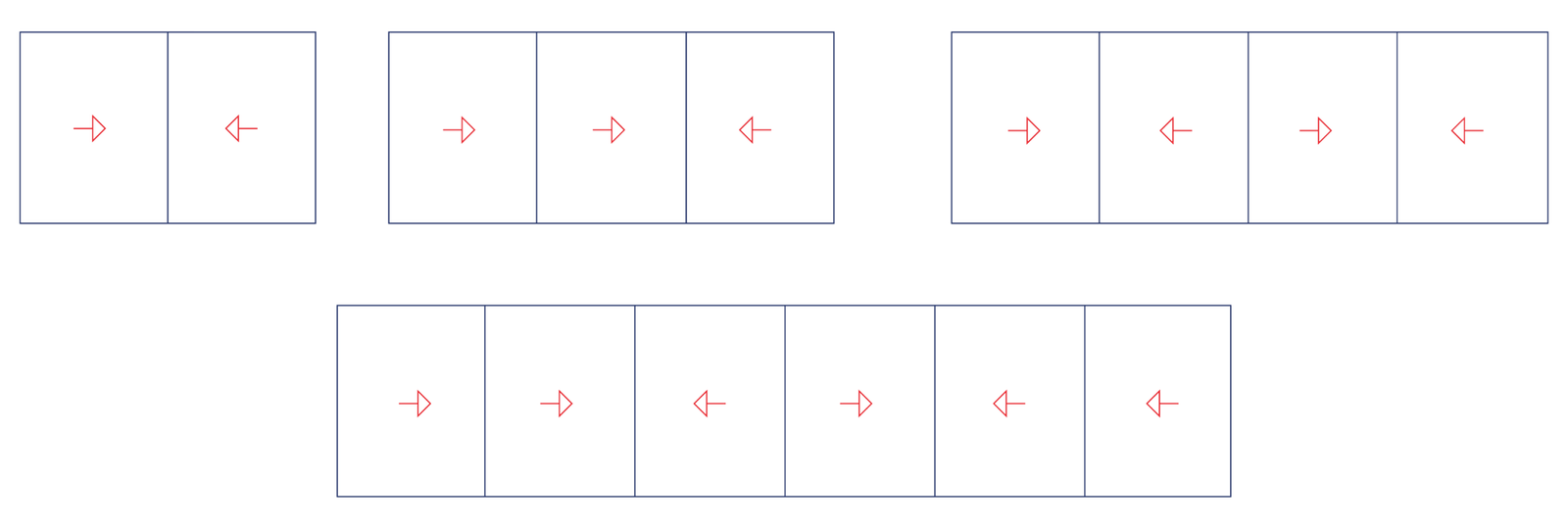

Opening Possibilities

*Consult maximum weight and dimensions according to typologies
