Meridian32

Smart and Performance oriented

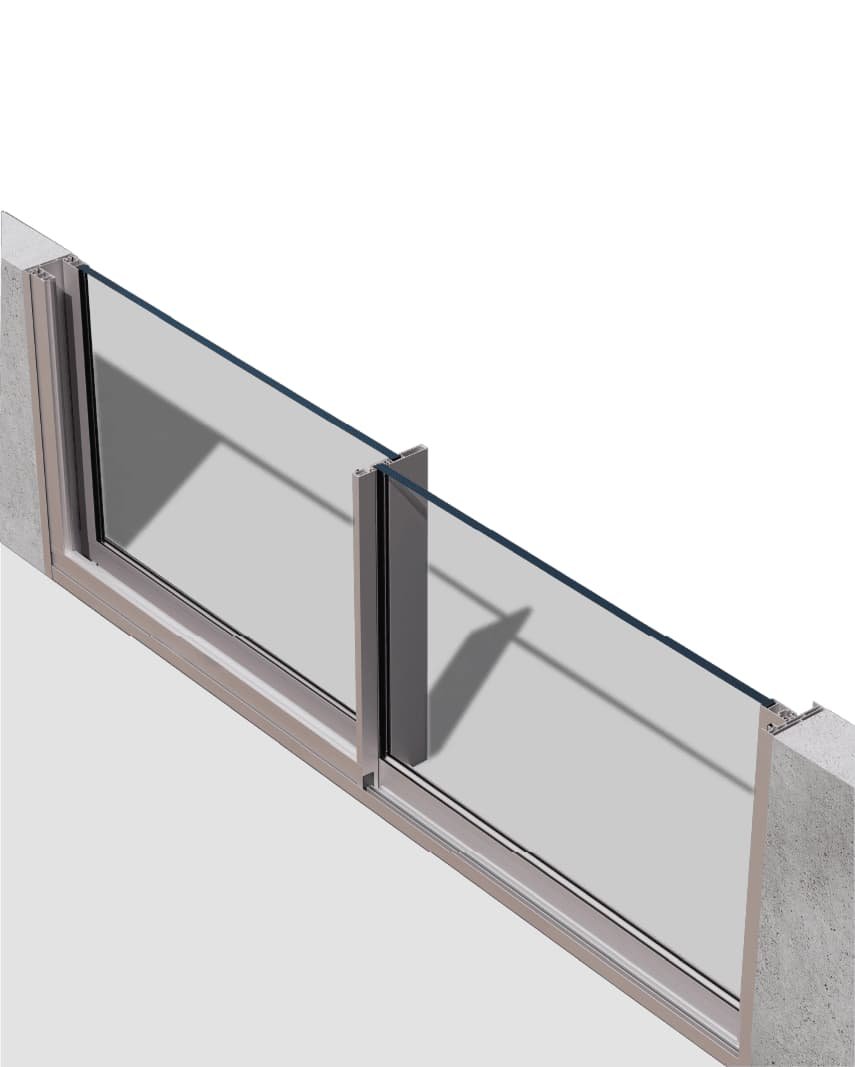

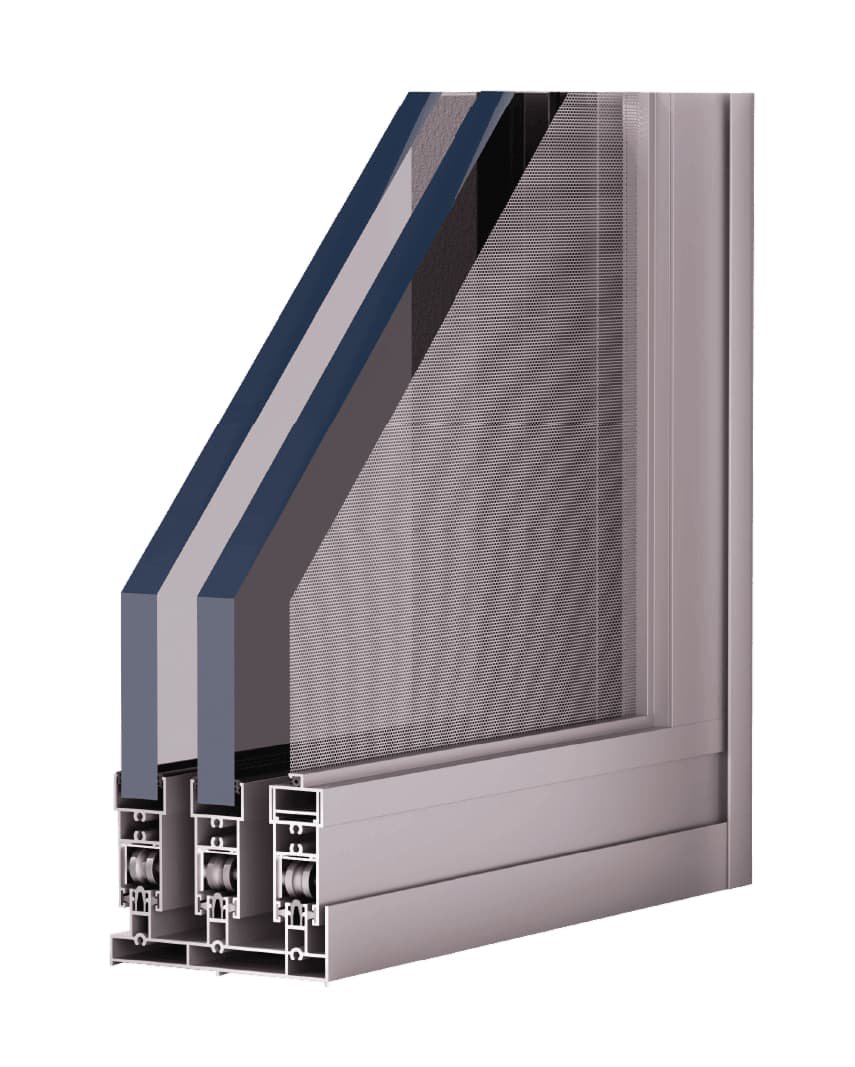

MERIDIAN32 a refined system aluminium sliding window. Combining a slim 20mm sightline for clear visuals and durable strength in high quality 6063-T6 Alloy. Made for contemporary aluminium house and industrial premises windows, it is designed with single and multi-point locking to ensure extra protection. The system can accommodate mesh tracks, various glass options, different finishes and versatile configurations. With an aggressive, minimalist design language, MERIDIAN32 is perfect for any architects or fabricators and a customizable product line that runs smoother than anything currently available.

  • Slimline sliding system with modern aesthetics

  • Ultra-narrow profiles for maximum glass view

  • Smooth and effortless sliding movement

  • Supports large glass panels

  • Elegant minimal frame appearance

  • Multiple track configuration options

  • Internal fly mesh compatibility

  • Strong, durable, and low maintenance

  • Ideal for luxury residential spaces

  • Designed for contemporary architecture

GLAZING

Minimum

6 mm

Maximum

24 mm glass

Possible Typology

2, 3, 4, 6 leaf

Frame Width

2 track

85 mm

3 track

132 mm

Frame depth

30 | 40mm

SASH

65 mm

Profile thickness

1.5 to 5mm

Maximum weight per leaf

160 Kg

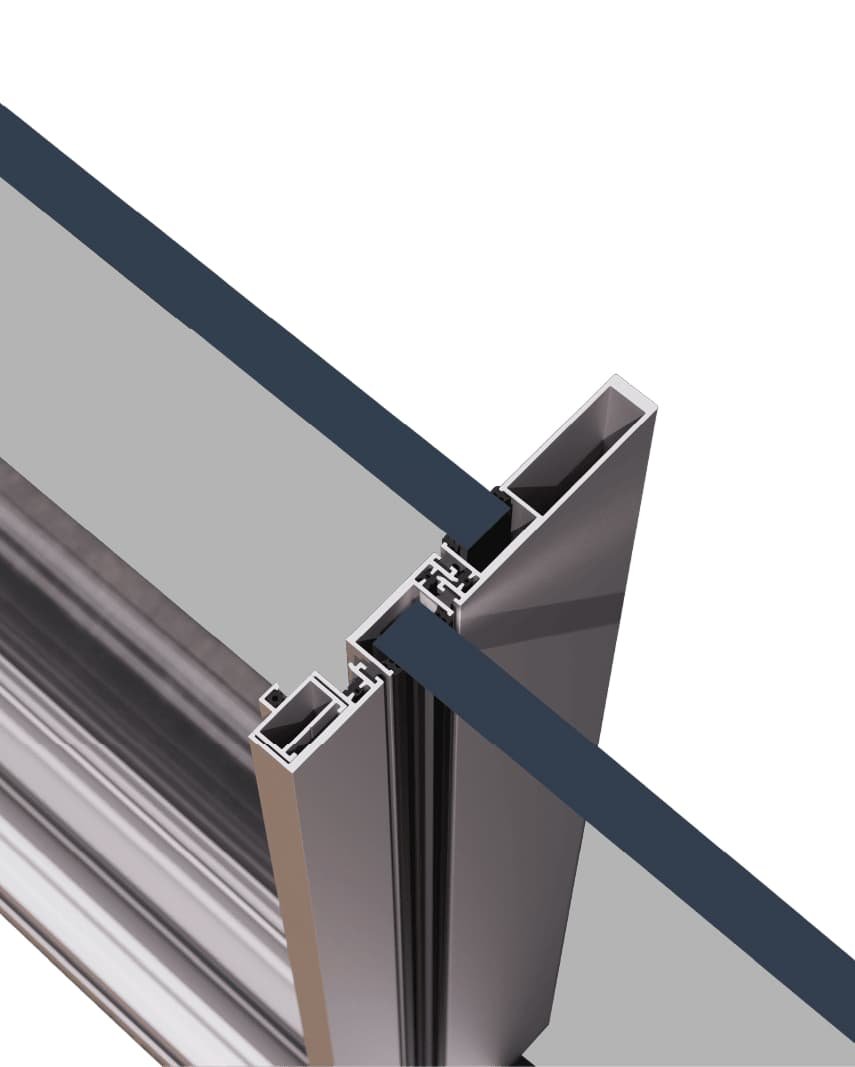

Central interlocking

20 mm

Multi-locking system with key option

Yes

Permittable dimensions per leaf (W X H)

1220 X 2700

Transmittance

Uw from 3.0 (W/m2k)*

*Please consult typology, dimensions & glass

Maximum acoustic insulation

Rw = 30 dB

Wind resistance

Test BS EN 12211:2016 (2.5 kPA, Class BE2500)

Air permeability

Test BS EN 1026:2016 (PA 600, Class 4)

Water tightness

Test BS EN 1027:2016 (PA 600, Class 5A)

Product Brochure

Master Catalogue

Technical Sheet DWG

Sections

BIM

Key Advantages

Opening Possibilities

*Consult maximum weight and dimensions according to typologies
